90
(6) [Status] page
Select the status of a bus. The selection is not available when a time stamp is acquired.

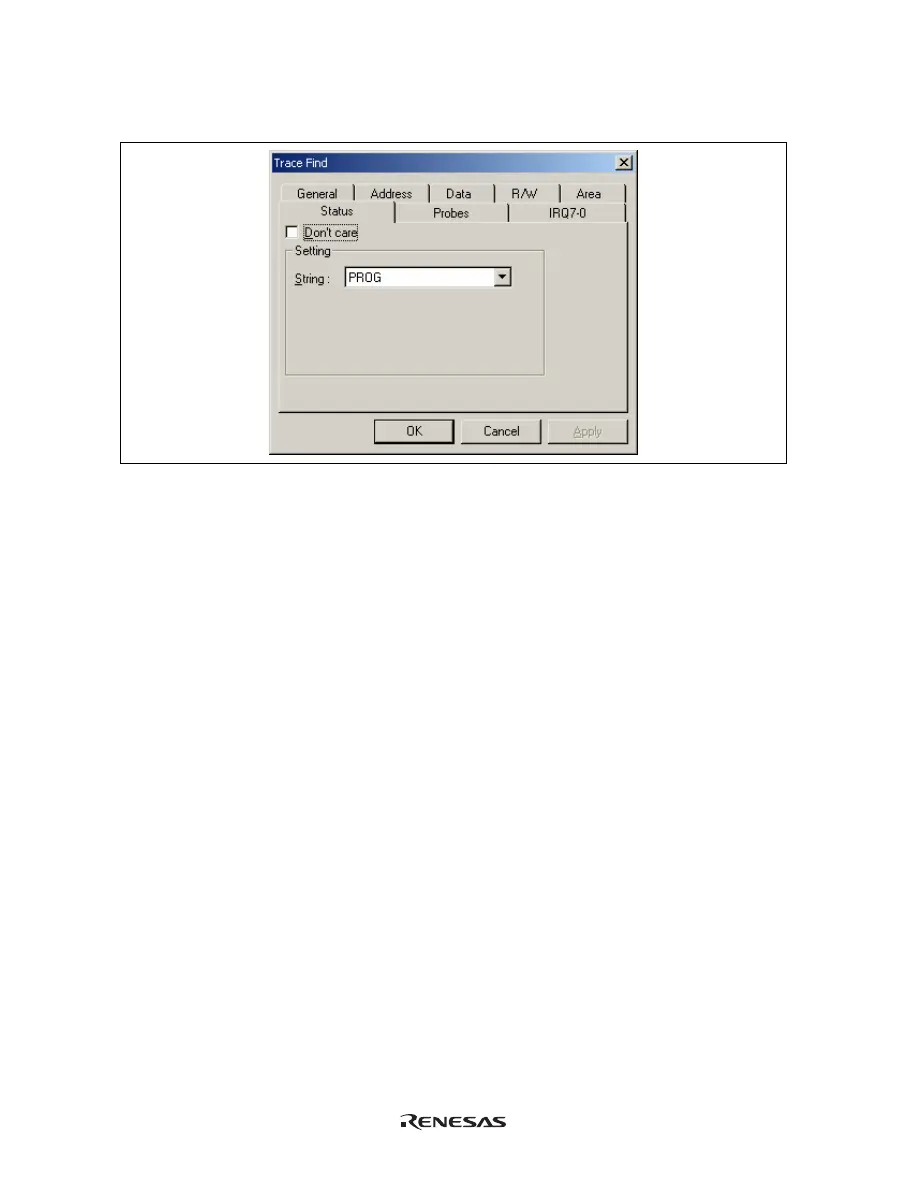

Figure 5.42 [Trace Find] Dialog Box ([Status] Page)
[Don't care]: Detects no bus condition when this box is checked.
[Setting]: Detects the specified bus condition.
[String]: Select a bus condition (not available when [Don’t care] has been checked).
Note: Available bus conditions vary according to the emulator in use. For details, refer to section 5.7.4, Signals
to Indicate Bus States and Areas.
