96
(1) [General] page
Set the range for filtering.

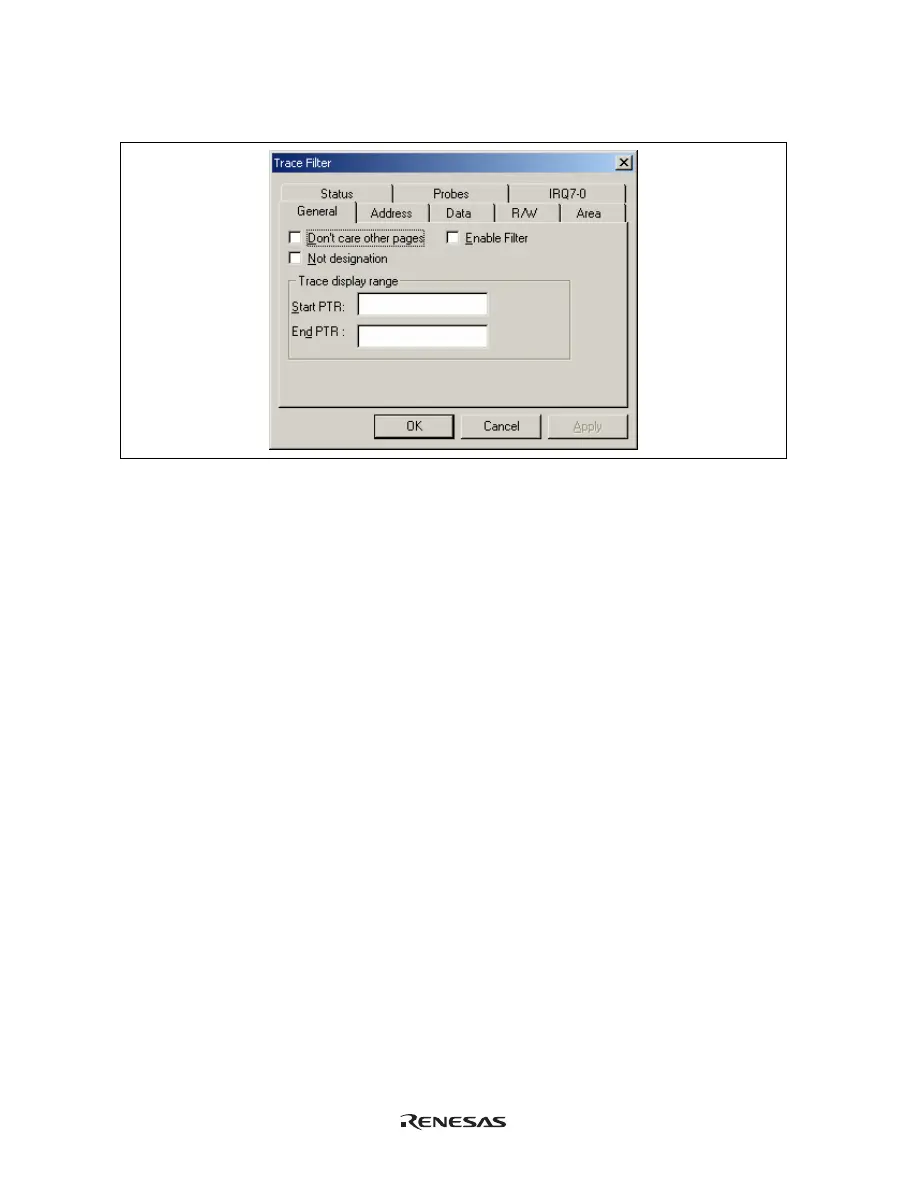

Figure 5.46 [Trace Filter] Dialog Box ([General] Page)
[Don't care other pages]: Only selects the cycle number when this box is checked. Other options become
invalid.
[Enable Filter]: Enables the filter when this box is checked.
[No]: Filters information that does not match the conditions set in those pages when this
box is checked.
[Trace display range]: Sets the range for filtering.
[Start PTR]: Enters a PTR value to start filtering.
[End PTR]: Enters a PTR value to end filtering.
Note: Along with setting the range for filtering, PTR values to start and end filtering can be set in the [Start
PTR] and [End PTR] options, respectively.
