97
(2) [Address] page
Set address conditions.

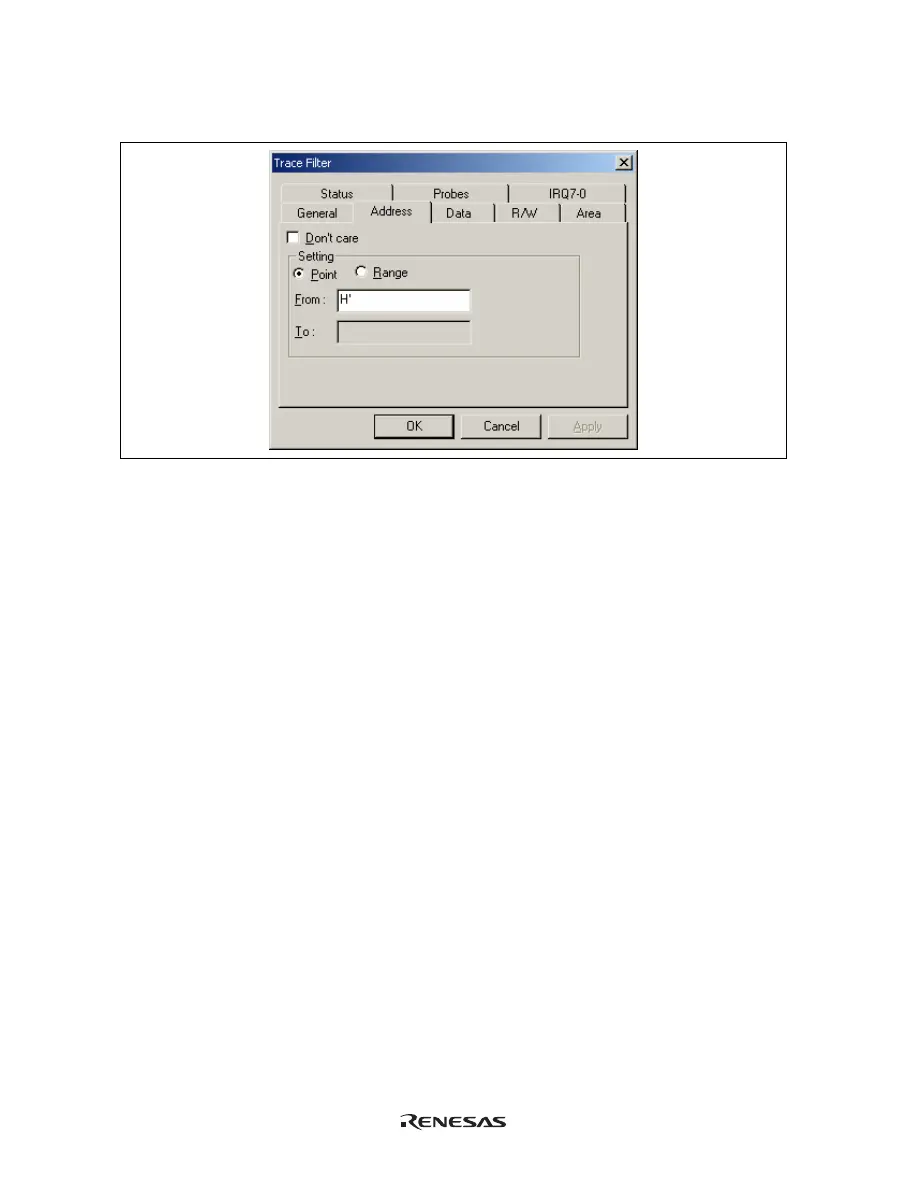

Figure 5.47 [Trace Filter] Dialog Box ([Address] Page)
[Don't care]: Detects no address when this box is checked.
[Setting]: Detects the specified address.
[Point]: Specifies a single address (not available when [Don’t care] has been checked).
[Range]: Specifies an address range (not available when [Don’t care] has been checked).
[From]: Enter a single address or the start of the address range (not available when [Don’t
care] has been checked).
[To]: Enter a single address or the end of the address range (only available when [Range]
has been selected).
Note: Along with setting the address range, the start and end of the address range can be set in the [From] and
[To] options, respectively.
