98
(3) [Data] page
Set a data condition.

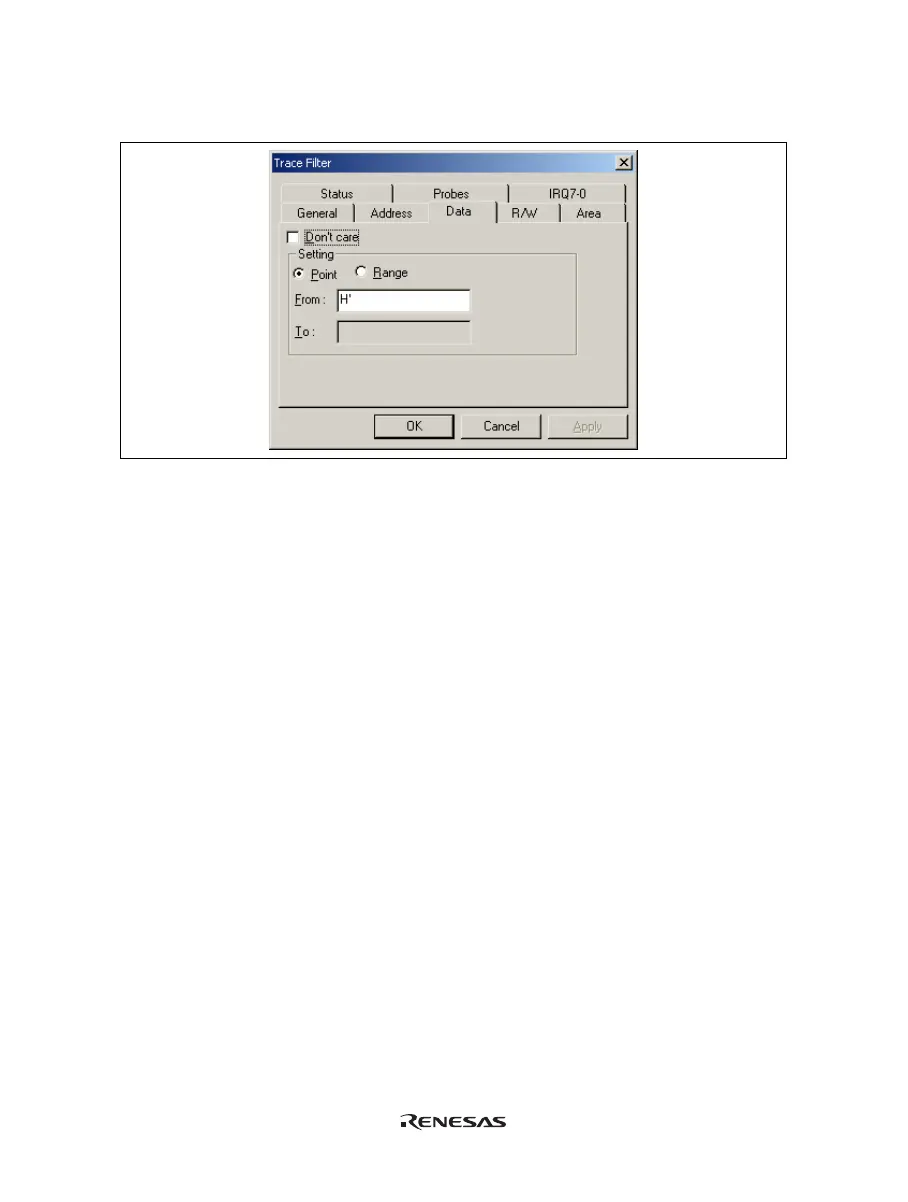

Figure 5.48 [Trace Filter] Dialog Box ([Data] Page)
[Don't care]: Detects no data when this box is checked.
[Setting]: Detects the specified data.
[Point]: Specifies single data (not available when [Don’t care] has been checked).
[Range]: Specifies a data range (not available when [Don’t care] has been checked).
[From]: Enter single data or the minimum value of the data range (not available when [Don’t
care] has been checked).
[To]: Enter the maximum value of the data range (only available when [Range] has been
selected).
Note: Along with setting the data range, the minimum and maximum values can be set in the [From] and [To]
options, respectively.
To Next Page
