(7) [Probes] page
Select the status of four probe signals. The selection is not available when a time stamp is acquired.

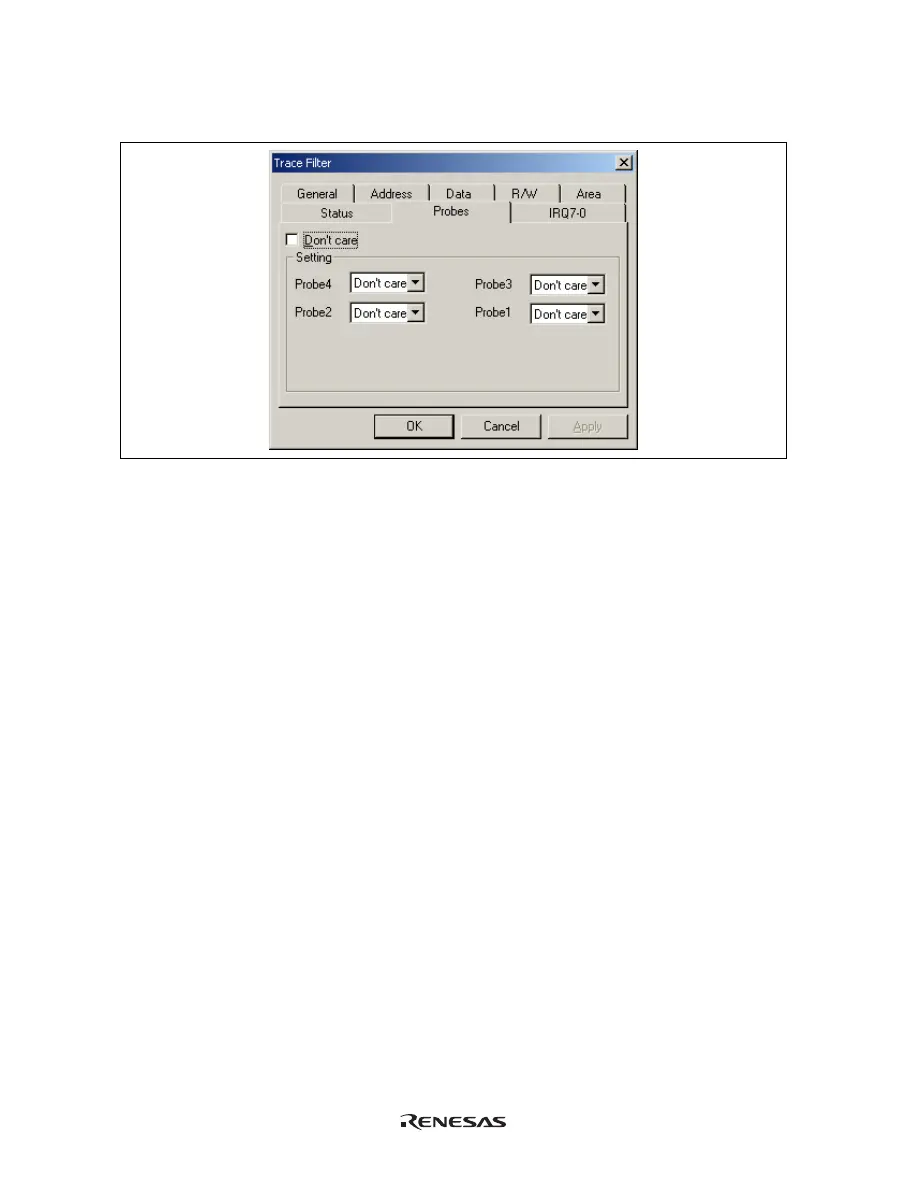

Figure 5.52 [Trace Filter] Dialog Box ([Probes] Page)
[Don't care]: Detects no probe signal condition when this box is checked.
[Setting]: Detects the specified probe signal condition.
[Probe4] to [Probe1]: Select probe conditions (not available when [Don’t care] has been checked).
Don't care: Detects no selected probe condition.
High: The status of the probe signal is high.
Low: The status of the probe signal is low.
