(8) [IRQ7-0] page
Select the status of IRQ signals. The selection is not available when a time stamp is acquired.

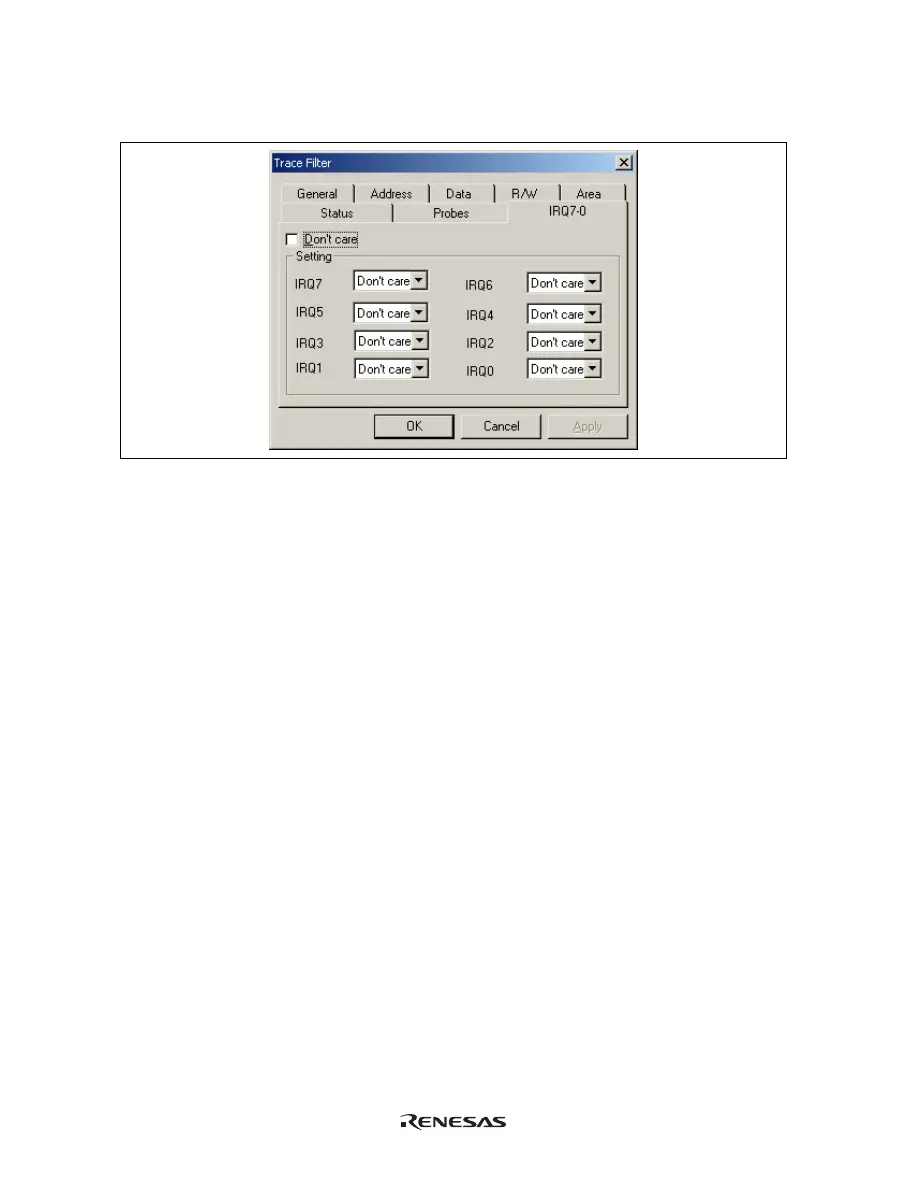

Figure 5.53 [Trace Filter] Dialog Box ([IRQ7-0] Page)
[Don't care]: Detects no IRQ input condition when this box is checked.
[Setting]: Detects the specified IRQ input condition.
[IRQ7] to [IRQ0]: Select IRQ input conditions (not available when [Don’t care] has been
checked).
Don't care: Detects no selected IRQ input condition.
High: The status of the IRQ input is high.
Low: The status of the IRQ input is low.
