(c) From normal memory to EEPROM
Selecting a memory range and then [Copy…] from the popup menu opens the [Copy] dialog box (figure
8.9). Select the [MEMORY -> EEPROM] toggle button in the [Copy Direction] group box.

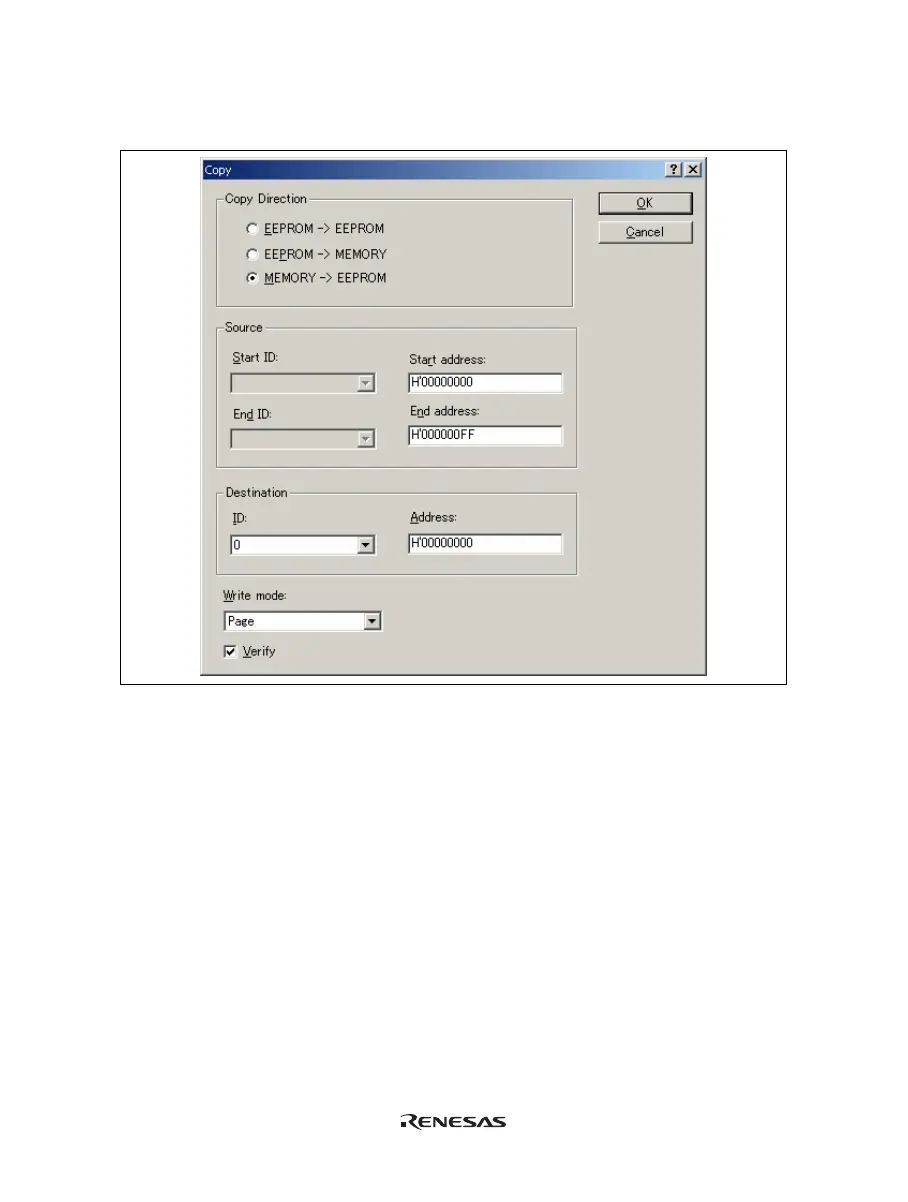

Figure 8.9 [Copy] Dialog Box (MEMORY -> EEPROM)
Enter the source start address and end address in normal memory in the [Start address] and [End address]
fields. Checking the [Verify] check box enables copying while comparing the copy source and copy
destination. The copy unit can be selected in the [Write mode] combo box. As the destination, select the
start slave address from the [ID] combo box and enter the start address value in the [Address] field of the
[Destination] group box, respectively. Then click the [OK] button or press the [Enter] key. This will close
the dialog box and copy the memory block to the new address.
(7) Disabling Update of the Window Contents
Automatic update of the [EEPROM] window contents, which is performed when user program execution
stops or in other cases, can be disabled. This is done by checking [Lock Refresh] in the popup menu.
(8) Updating the Window Contents
The [EEPROM] window contents can be forcibly updated. This is done by checking [Refresh] in the popup
menu.
