(b) From EEPROM to normal memory
Selecting a memory range and then [Copy…] from the popup menu opens the [Copy] dialog box (figure
8.8). Select the [EEPROM -> MEMORY] toggle button in the [Copy Direction] group box.

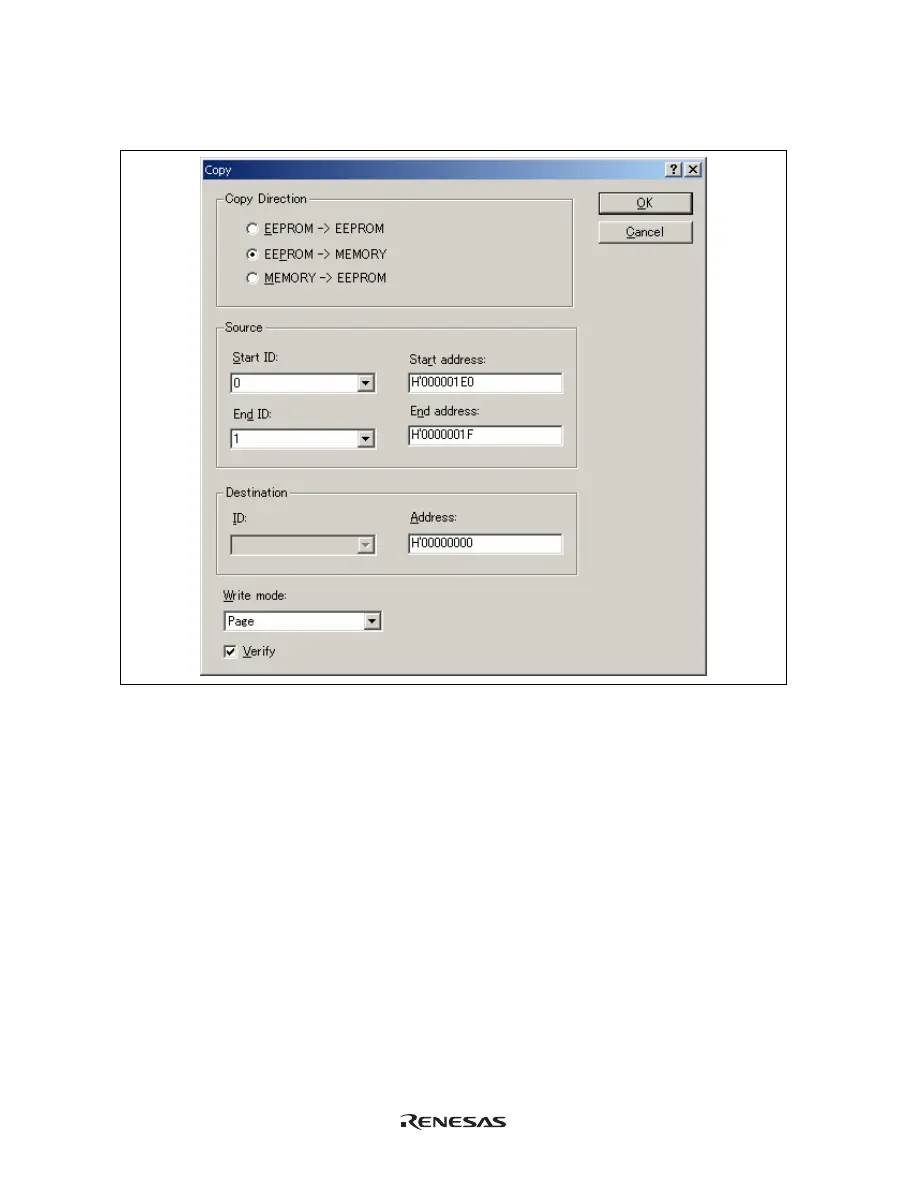

Figure 8.8 [Copy] Dialog Box (EEPROM -> MEMORY)
The start slave address and end slave address as the source selected in the [EEPROM] window will be
displayed in the [Start ID] and [End ID] combo boxes. The source start address and end address will be
displayed in the [Start address] and [End address] fields. Checking the [Verify] check box enables
copying while comparing the copy source and copy destination. The copy unit can be selected in the
[Write mode] combo box. Enter the start address value of the destination in normal memory in the
[Address] field of the [Destination] group box. Then click the [OK] button or press the [Enter] key. This
will close the dialog box and copy the memory block to the specified address in normal memory.
