(1) [General] page
The address and data conditions are set.

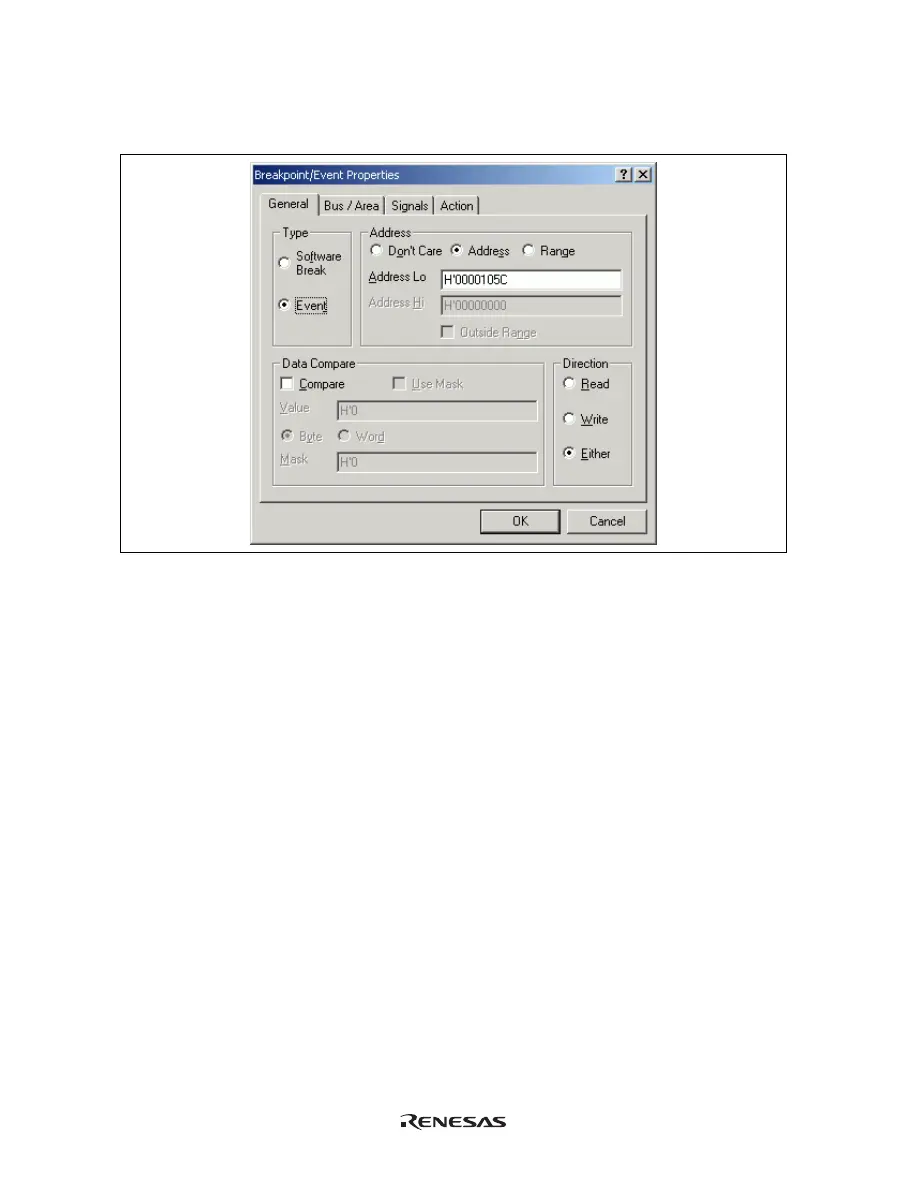

Figure 5.22 [Breakpoint/Event Properties] Dialog Box ([General] Page)
[Type]: Select the type of a breakpoint. Note that the [Breakpoint/Event Properties] dialog box is used
for setting software breakpoints and event points. Selecting a particular type of breakpoint
enables or disables other pages and parts of the dialog according to the options available to that
type of breakpoint.
[Software Break]: Only a single address with a program fetch can be selected. Other options are invalid.
[Event]: Set conditions in detail with other options on this page, or on the [Bus/Area],
[Signals], or [Action] page.
[Address]: Sets the address condition.
[Don’t care]: Sets no address condition.
[Address]: Allows a single address to be selected.
[Range]: Allows an address range to be selected.
[Adderess Lo]: Set a single address or the start of an address range (available when [Address] or
[Range] has been selected).
[Adderess Hi]: Set the end of an address range (available when [Range] has been selected).
[Outside Range]: Used to negate the range (i.e., the event will occur when the address is outside the
range). This is available when [Address] or [Range] has been selected.
