(3) [Signals] page
Use this page to set external signals.

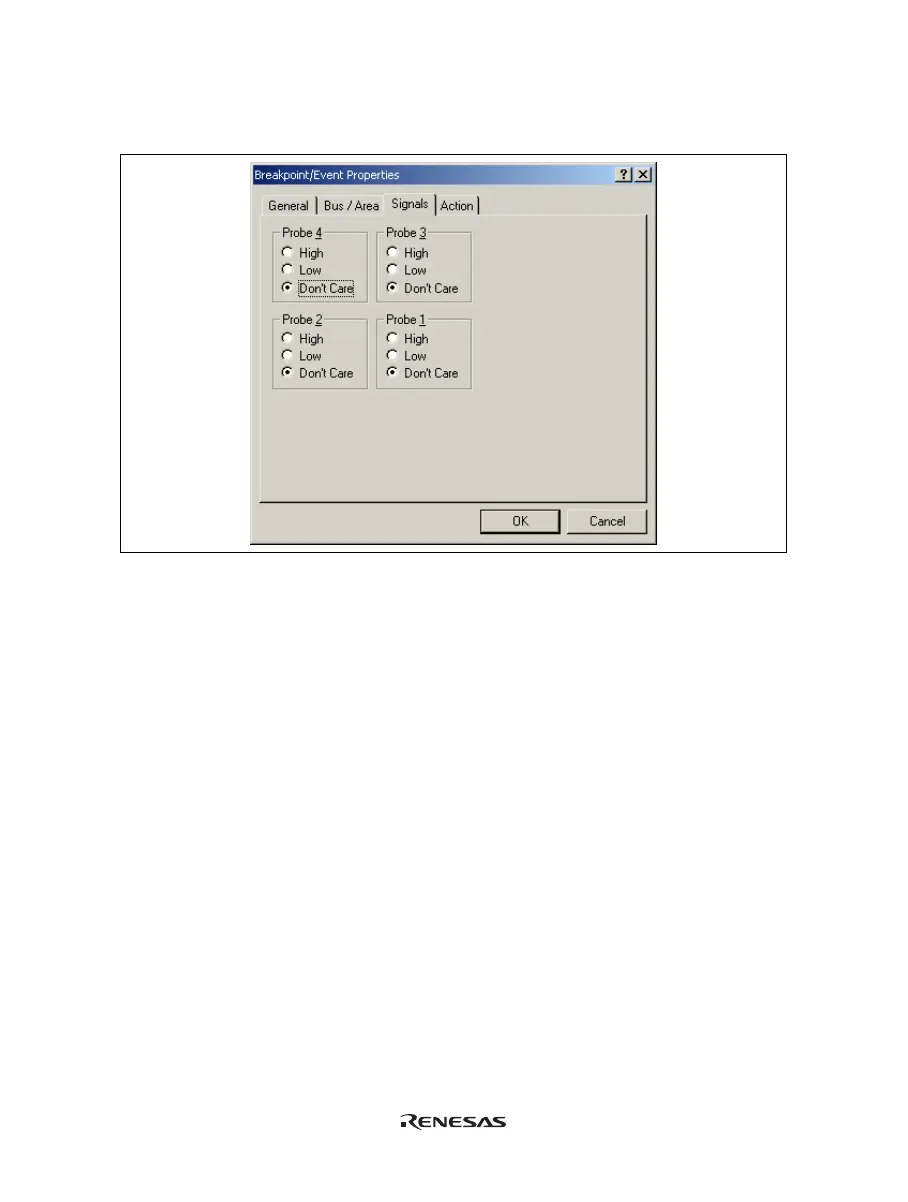

Figure 5.24 [Breakpoint/Event Properties] Dialog Box ([Signals] Page)
[Probe4]: Detects the status of the input probe signal 4
[High]: Detects the high level of the input probe signal
[Low]: Detects the low level of the input probe signal
[Don’t care]: The status of the input probe signal is not detected
[Probe3]: Detects the status of the input probe signal 3
[High]: Detects the high level of the input probe signal
[Low]: Detects the low level of the input probe signal
[Don’t care]: The status of the input probe signal is not detected
[Probe2]: Detects the status of the input probe signal 2
[High]: Detects the high level of the input probe signal
[Low]: Detects the low level of the input probe signal
[Don’t care]: The status of the input probe signal is not detected
