RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 251

Dec 10, 2015

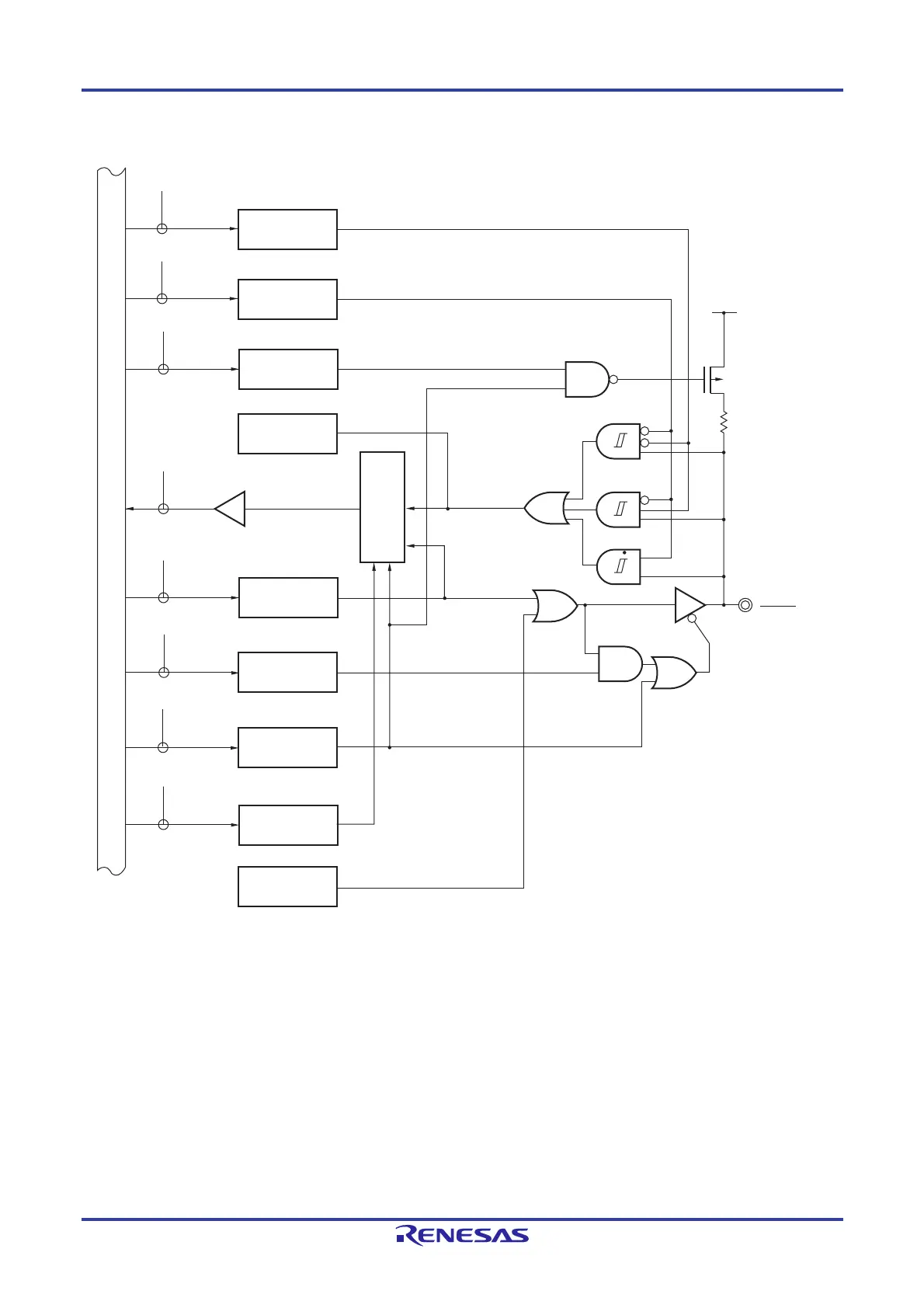

Figure 4-36. Block Diagram of P63

P63/SDAA0

(SSI00)

PORT

PU63

P63

P-ch

PU6

SDAA0

PM6

POM63

POM6

POM

PM63

TTL

PIM6

PIM63

PIM

PITHL6

PITHL63

PITHL

PMS

PMS0

CMOS

(Schmitt3)

CMOS

(Schmitt1)

Internal bus

Output latch

Alternate function

Selector

P6: Port register 6

PU6: Pull-up resistor option register 6

PM6: Port mode register 6

PIM6: Port input mode register 6

POM6: Port output mode register 6

PMS: Port mode select register

PITHL6: Port input threshold control register 6

RD: Read signal

WRxx: Write signal
