RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 275

Dec 10, 2015

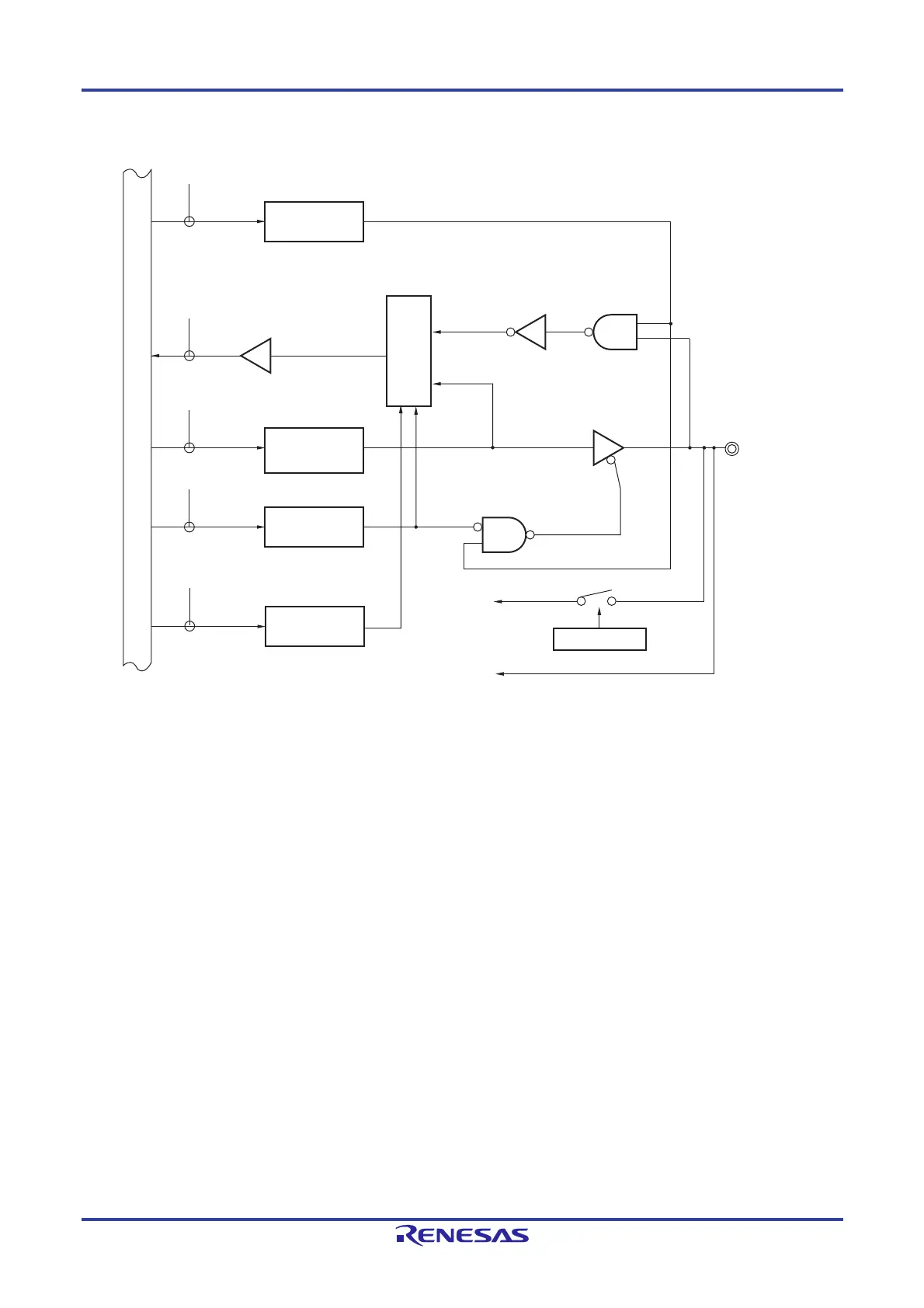

Figure 4-52. Block Diagram of P83

P83/ANI5

IVCMP02

ADPC

PORT

WRPM

ADPC

PM8

PM83

P83

ADPC4 to ADPC0

WRPMS

PMS

PMS0

Analog voltage

input for comparator

0: Analog input

1: Digital I/O

Internal bus

Output latch

Selector

A/D converter

ADS

ADS4 to ADS0

P8: Port register 8

PM8: Port mode register 8

PMS: Port mode select register

ADPC: A/D port configuration register

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
