RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 282

Dec 10, 2015

Figure 4-57 shows a block diagram of port 9 for 100-pin products.

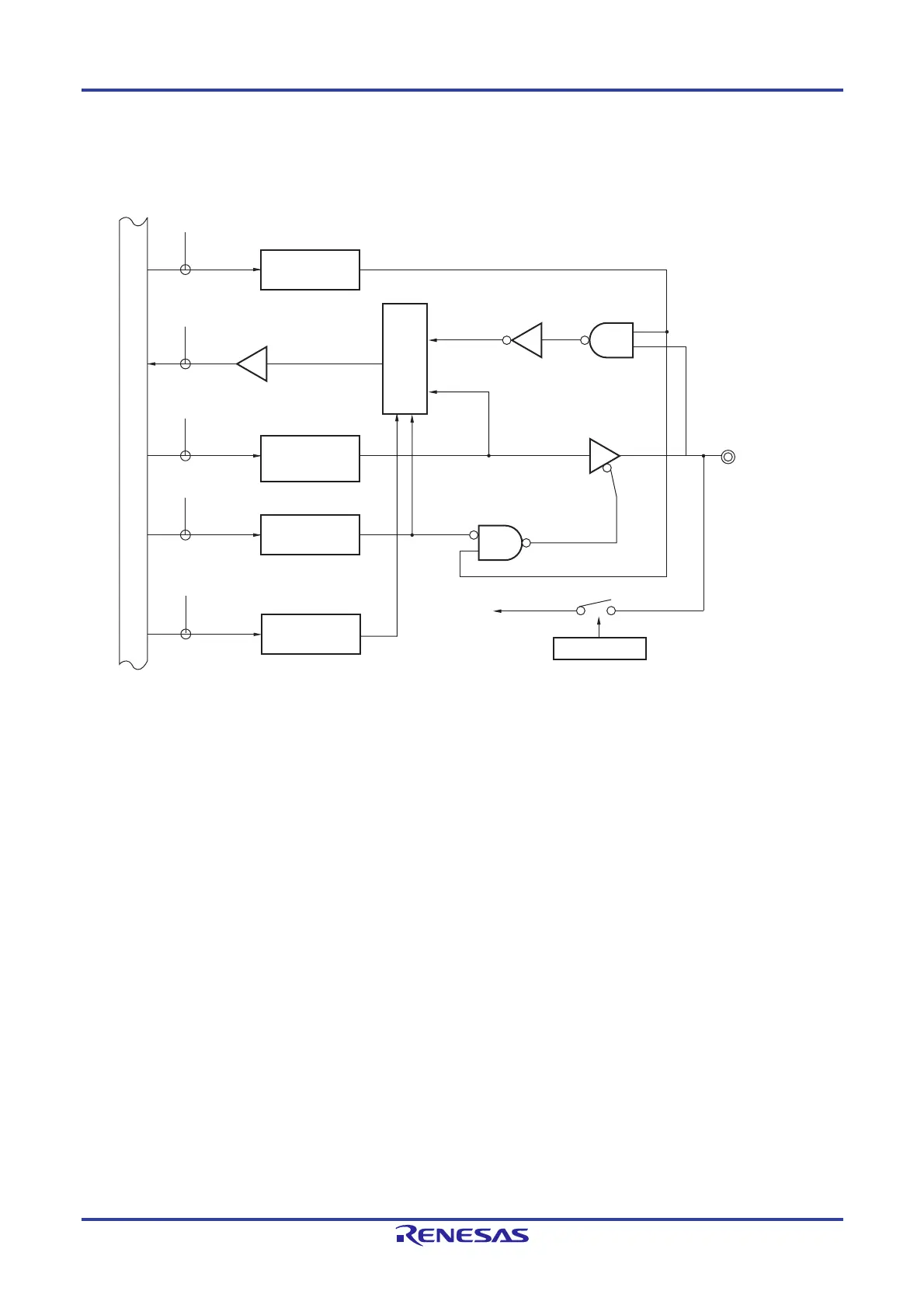

Figure 4-57. Block Diagram of P90 to P97

P90/ANI10,

P91/ANI11,

P92/ANI12,

P93/ANI13,

P94/ANI14,

P95/ANI15,

P96/ANI16,

P97/ANI17

ADPC

PORT

ADPC

PM9

PM90 to PM97

P90 to P97

ADPC4 to ADPC0

PMS

PMS0

0: Analog input

1: Digital I/O

Internal bus

Output latch

Selector

A/D converter

ADS

ADS4 to ADS0

P9: Port register 9

PM9: Port mode register 9

PMS: Port mode select register

ADPC: A/D port configuration register

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
