RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 293

Dec 10, 2015

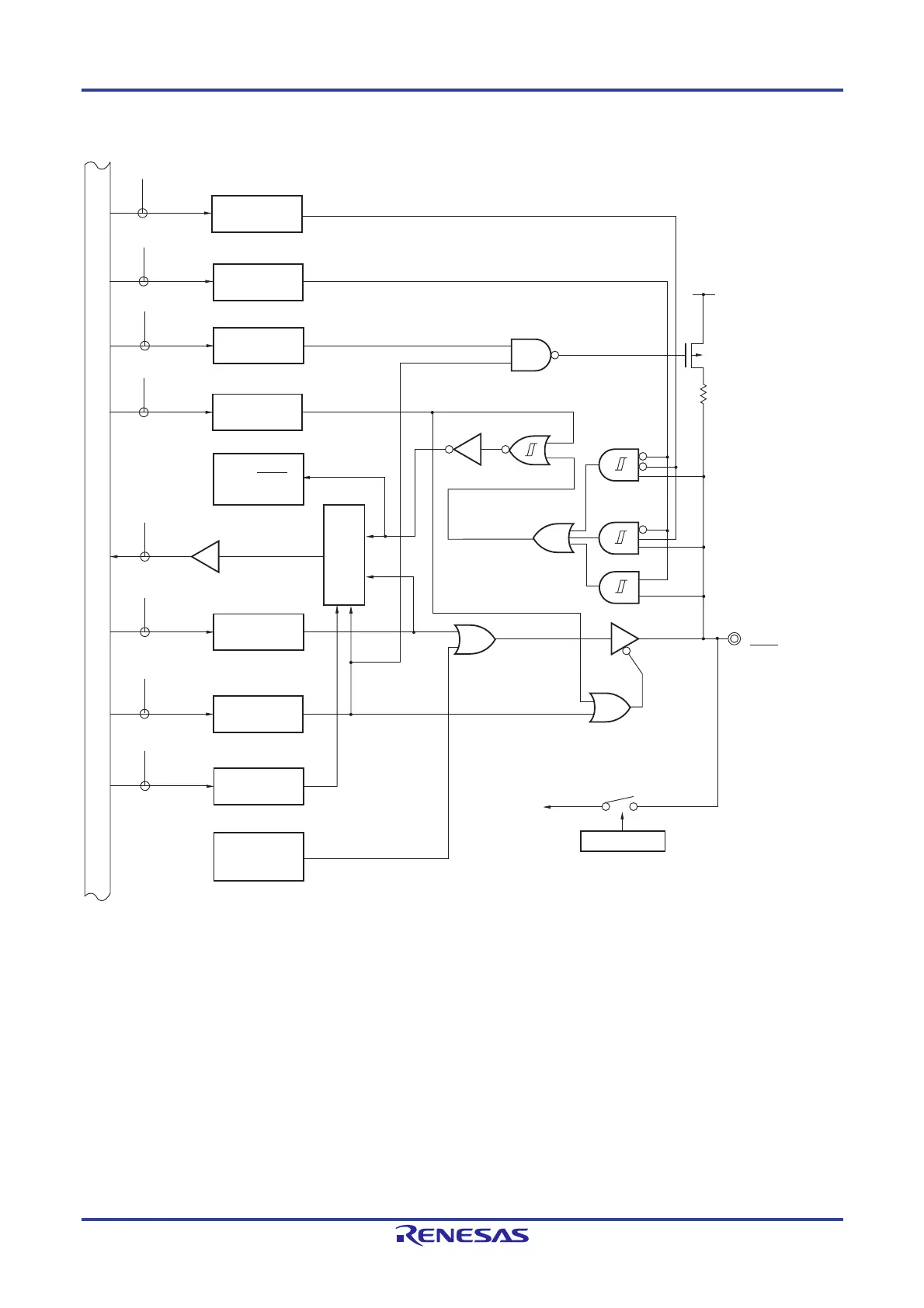

Figure 4-64. Block Diagram of P125

P125/TI03/INTP1

TO03/TRDIOB0/

SSI01/SNZOUT1/

ANI24

PORT

PU125

INTP1/SSI01/

TI03/TRDIOB0

P125

P-ch

PU12

P12

PM12

PM125

PIM12

PIM125

PIM

PMC

PMC12

PMC125

PMS

PMS0

TRDIOB0,

SNZOUT1/TO03

CMOS

(Schmitt3)

TTL

CMOS

(Schmitt1)

PITHL12

PITHL125

PITHL

Internal bus

Output latch

Alternate function

Selector

A/D converter

ADS

ADS4 to ADS0

P12: Port register 12

PU12: Pull-up resistor option register 12

PM12: Port mode register 12

PIM12: Port input mode register 12

PMC12: Port mode control register 12

PMS: Port mode select register

PITHL12: Port input threshold control register 12

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
