RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 989

Dec 10, 2015

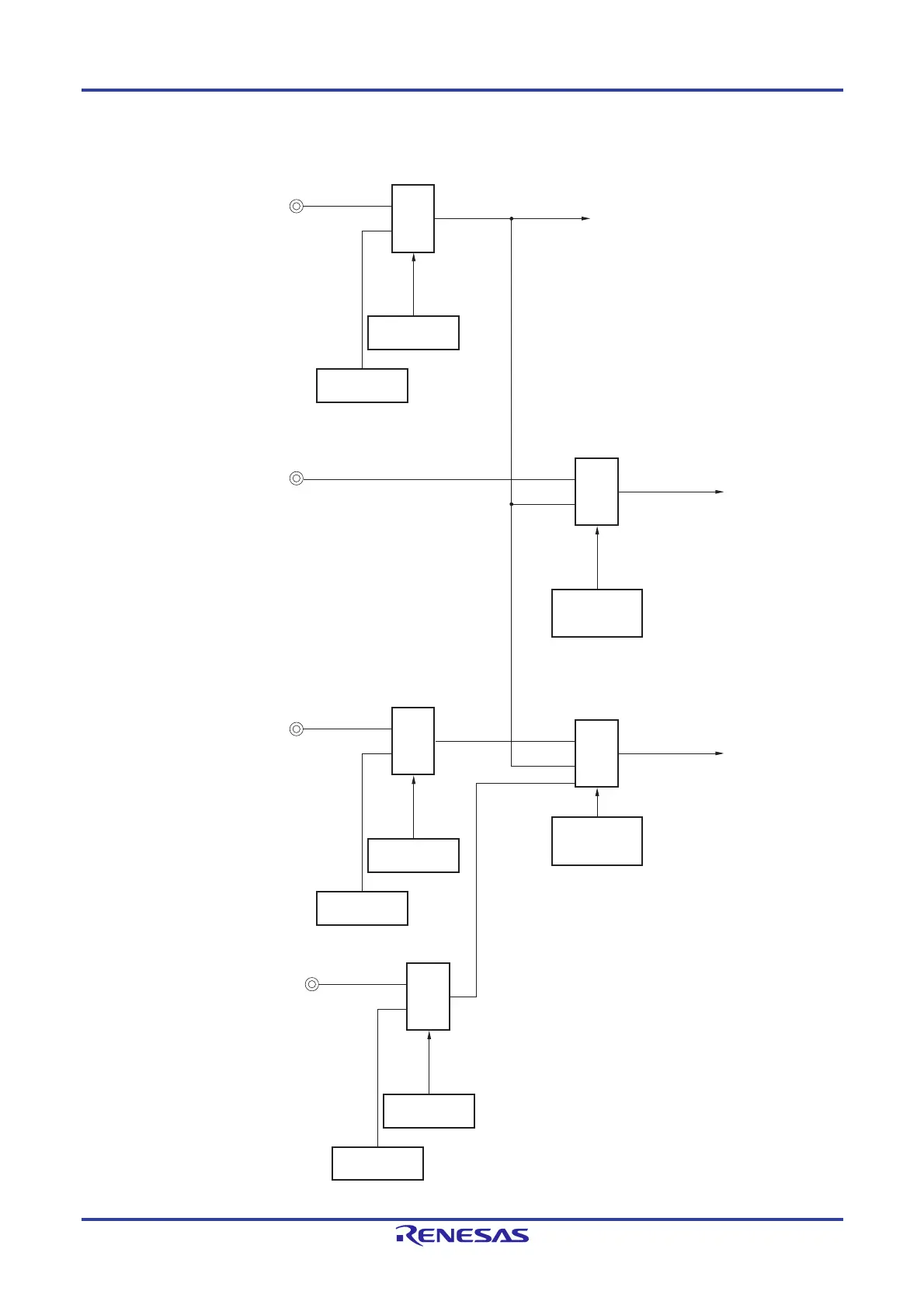

Figure 15-142. Port Configuration for Manipulating Reception of LIN

Remark ISC0: Bit 0 of the input switch control register (ISC) (See Figure 15-18.)

RXD0 input

INTP0 input

Channel 7 input of

timer array unit 0

P16/TI02/TO02/TRDIOC1/

SI00/SDA00/RXD0/TOOLRXD

P137/INTP0

P120/ANI25/TI07/TO07/TRDIOD0/

SO01/INTP4

Port input

switch control

(ISC0)

<ISC0>

0: Selects INTP0 (P137)

1: Selects RxD0 (P16)

Timer input

select control

(TIS1)

Port mode

(PM16)

Output latch

(P16)

<TIS17, TIS16>

00: Selects TI07 (P120)

01: Selects RTC1Hz (P15)

10: Selects RxD0 (P16)

11: Setting prohibited

Selector

Port mode

(PM120)

Output latch

(P120)

P15/TI05/TO5/TRDIOA1/

(TRDIOA0)/(TRDCLK0)/SI00/

TXD0/TOOLTXD/RTC1HZ

Port mode

(PM15)

Output latch

(P15)

Selector
