RL78/F13, F14
CHAPTER 18 CAN INTERF
ACE (RS-CAN LITE)
R01UH0368EJ021
0 Rev
.2.10
1407
Dec 10, 2015
18.10.4 Receive Rule Setting
Receive rules can be set using receiv
e rule-related regist
ers.
Up to 16 receive rules can be register
ed.
Figure 18-19 shows the receive rule settin
g procedure.

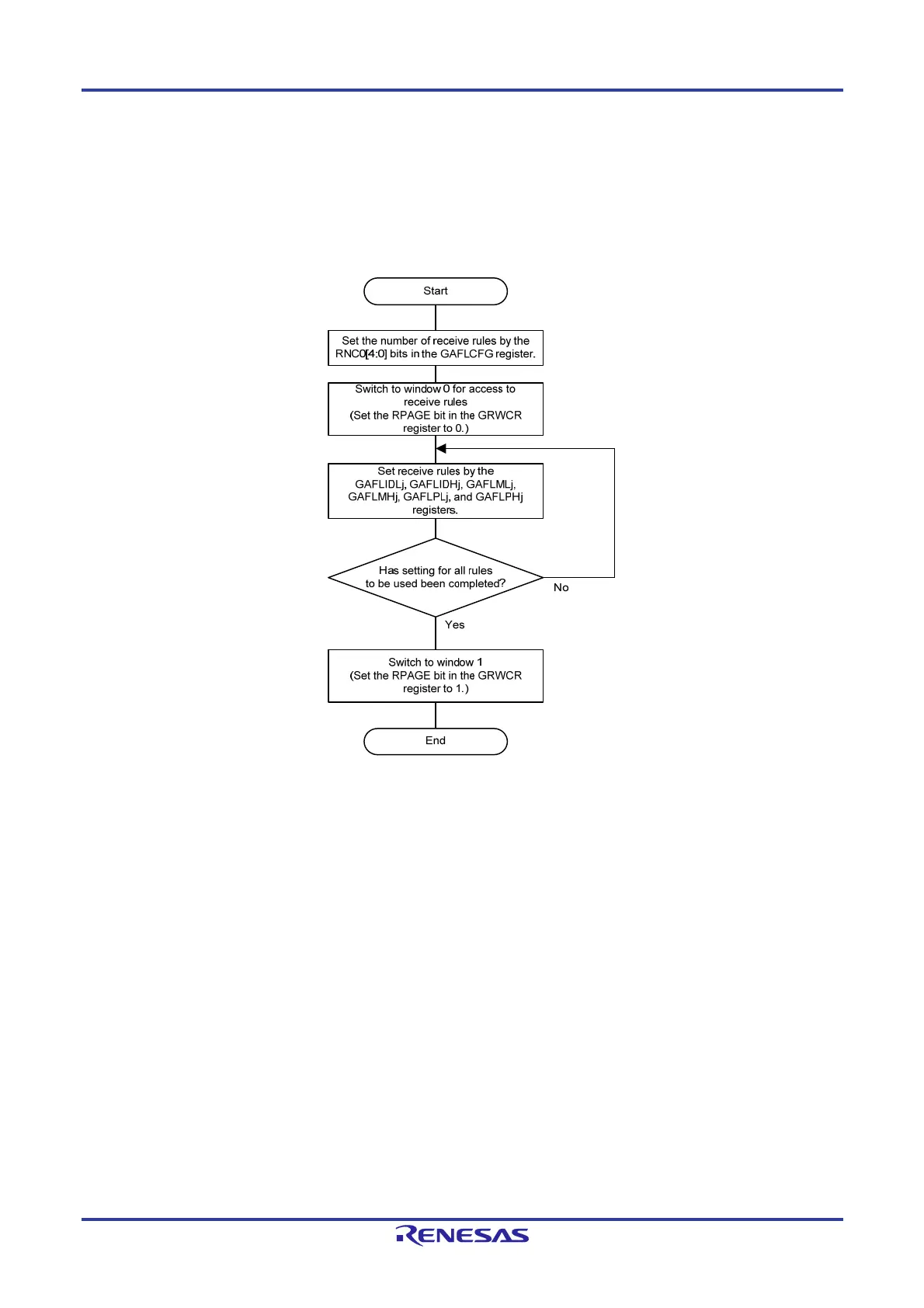

Figure 18-19. Recei
ve Rule Setting Procedure
1438
1440
