(c) Response Reception

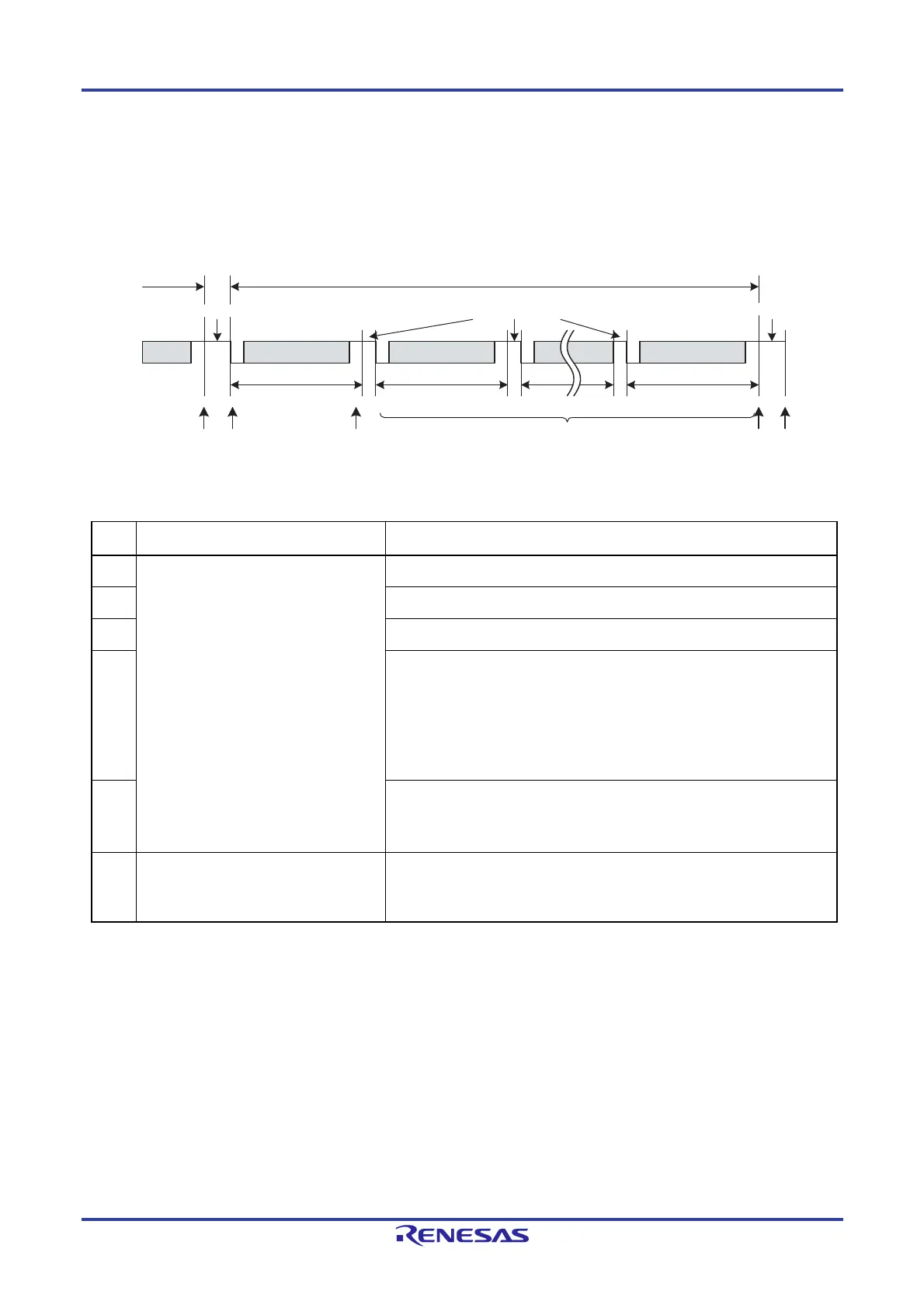

Figure 17-7 shows the operation of the LIN/UART module (LIN master mode) on response reception. Table 17-
9 provides processing in response reception.
Figure 17-7. Operation in Response Reception
Table 17-9.
Processing in Response Reception
Step Software processing LIN/UART module processing
(1) Waits for an interrupt request (no
processing).
Waits for detection of a start bit.
(2) Receives the data 1 when the start bit is detected.
(3) Sets the successful data 1 reception flag.
(4)
 Receives the data 2 when the start bit is detected.
 Receives the data 3 when the start bit is detected.
Repeats the transmission of inter-byte spaces as many times as the data
length specified in bits RFDL[3:0] in the LDFCn register, and stops the
transmission when any bit in the LESTn register is 1 (bit error detected). If an
error occurs, the checksum determination in item (5) is not performed).
:
 Receives the checksum when the start bit is detected.
(5)
 Determines the checksum.
 Sets the successful frame/wake-up reception flag.
 Sets the FTS bit in the LTRCn register to 0 (frame transmission or wake-up
transmission/reception stopped).
(6)
 Processing after communication
Reads the received data.
Checks the LSTn register and clears
flags.
Idle
For information about error detection, refer to 17.4.6 Error Status.
Interrupt
Header
ID +
parity
Response space
Response
Data 1
Data field
Data 2
Data field
Inter-byte space
Checksum
Checksum
(1) (2) (3) (5)(4) (6)
Inter-frame space
