RL78/F13, F14 CHAPTER 17 LIN/UART MODULE (RLIN3)

R01UH0368EJ0210 Rev.2.10 1208

Dec 10, 2015

(d) No-Response Request

Figure 17-13 shows the operation of the LIN/UART module (LIN slave mode) when no response is requested. Table 17-13

shows the processing that occurs when no response is requested.

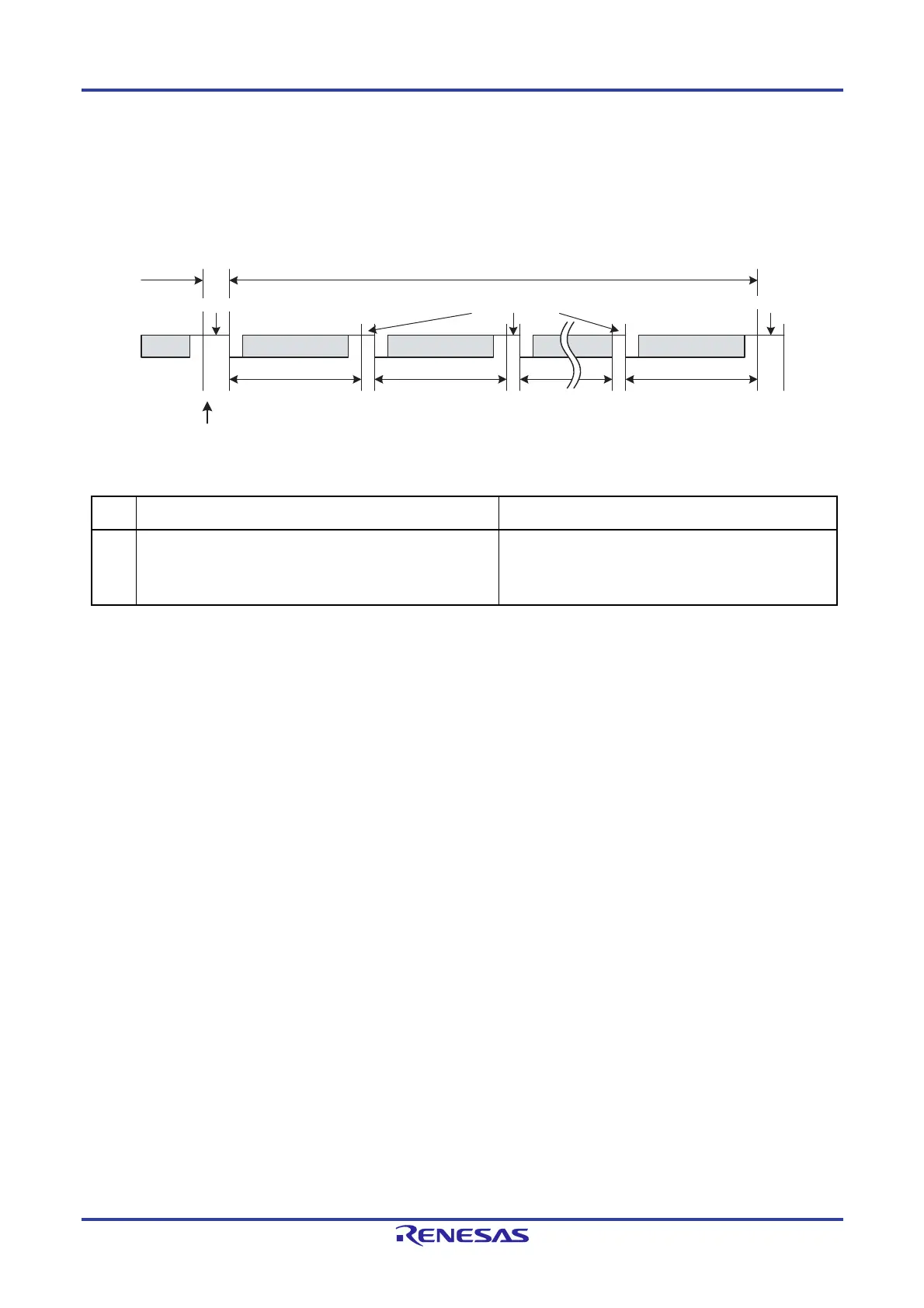

Figure 17-13. Operation when No Response is Requested

Table 17-13.

Processing when No Response is Requested

Step Software processing LIN/UART module processing

(1)

 Sets the no-response request bit (LNRR bit) to 1.

 Waits for the setting of the no-response request bit

(LNRR bit) by software.

 Completes the frame reception process.

 Waits for a new break.

Header

Response space

Inter-byte space Inter-frame space

Response

Data 1 Data 2 Checksum

Checksum

ID +

parity

Data fieldData field

(1)
