RL78/F13, F14
CHAPTER 21
INTERRUPT FUNCTIONS
R01UH0368EJ021
0 Rev.2.10
1507
Dec 10, 2015

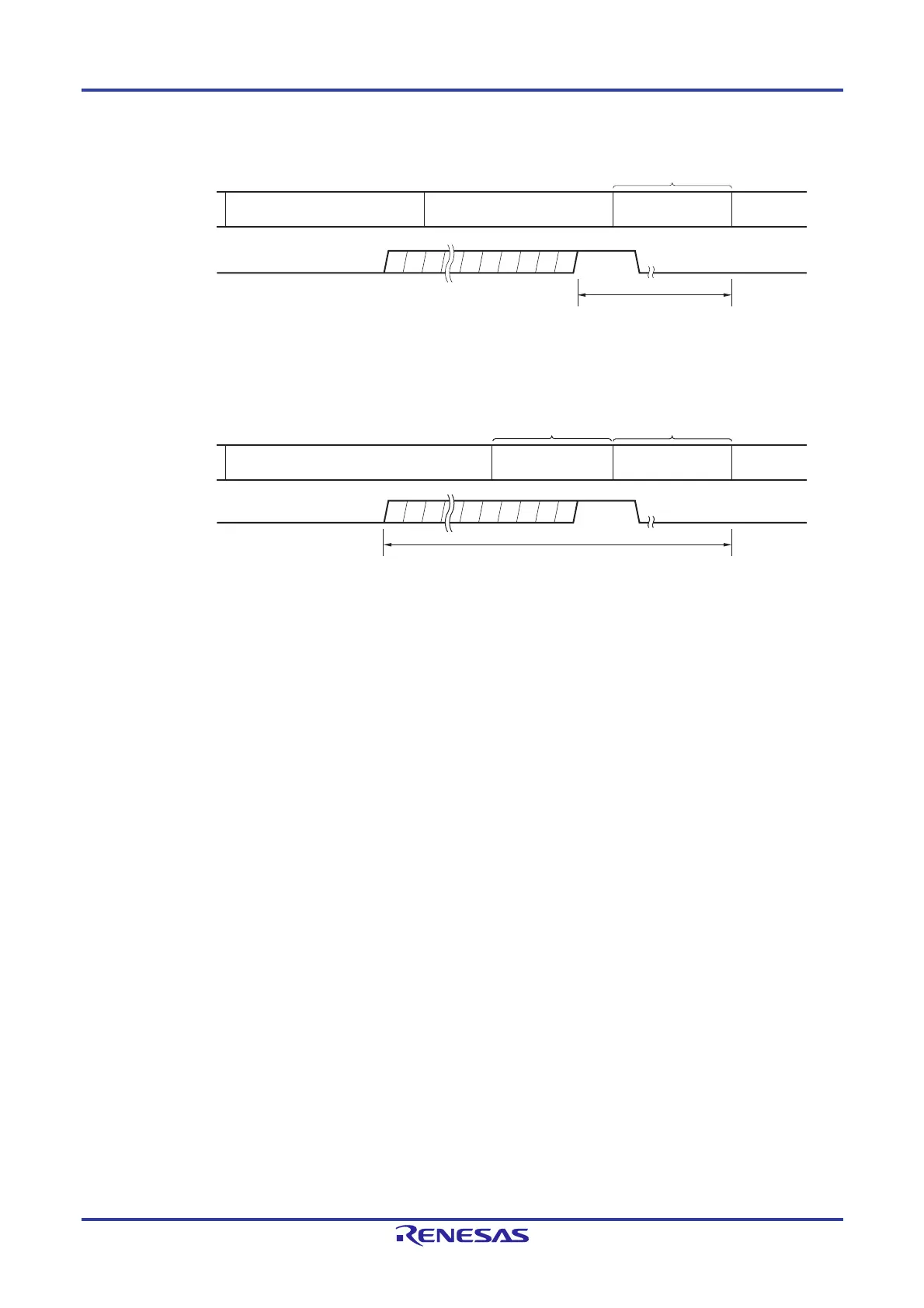

Figure 21-12. Interrupt Reque
st Acknowledgment Timing (Minimum Time)
Remark
1 clock: 1/f
CL
K
(f
CLK
: CPU clock)
Figure 21-13. Interrupt Reques
t Acknowledgment Timing (Maximum Time)
Remark
1 clock: 1/f
CLK
(f
CLK
: CPU clock)
9 clocks
Instruction
Instruction
CPU processing
××
IF
6 clocks
PSW and PC saved,
jump to interrupt
servicing
Interrupt servicing
program
16 clocks
Instruction
Instruction immediately
before interrupt
CPU processing
××
IF
6 clocks
8 clocks
PSW and PC saved,
jump to interrupt
servicing
Interrupt servicing
program
1538
