RL78/F13, F14 CHAPTER 35 ELECTRICAL SPECIFICATIONS (GRADE K)

R01UH0368EJ0210 Rev.2.10 1763

Dec 10, 2015

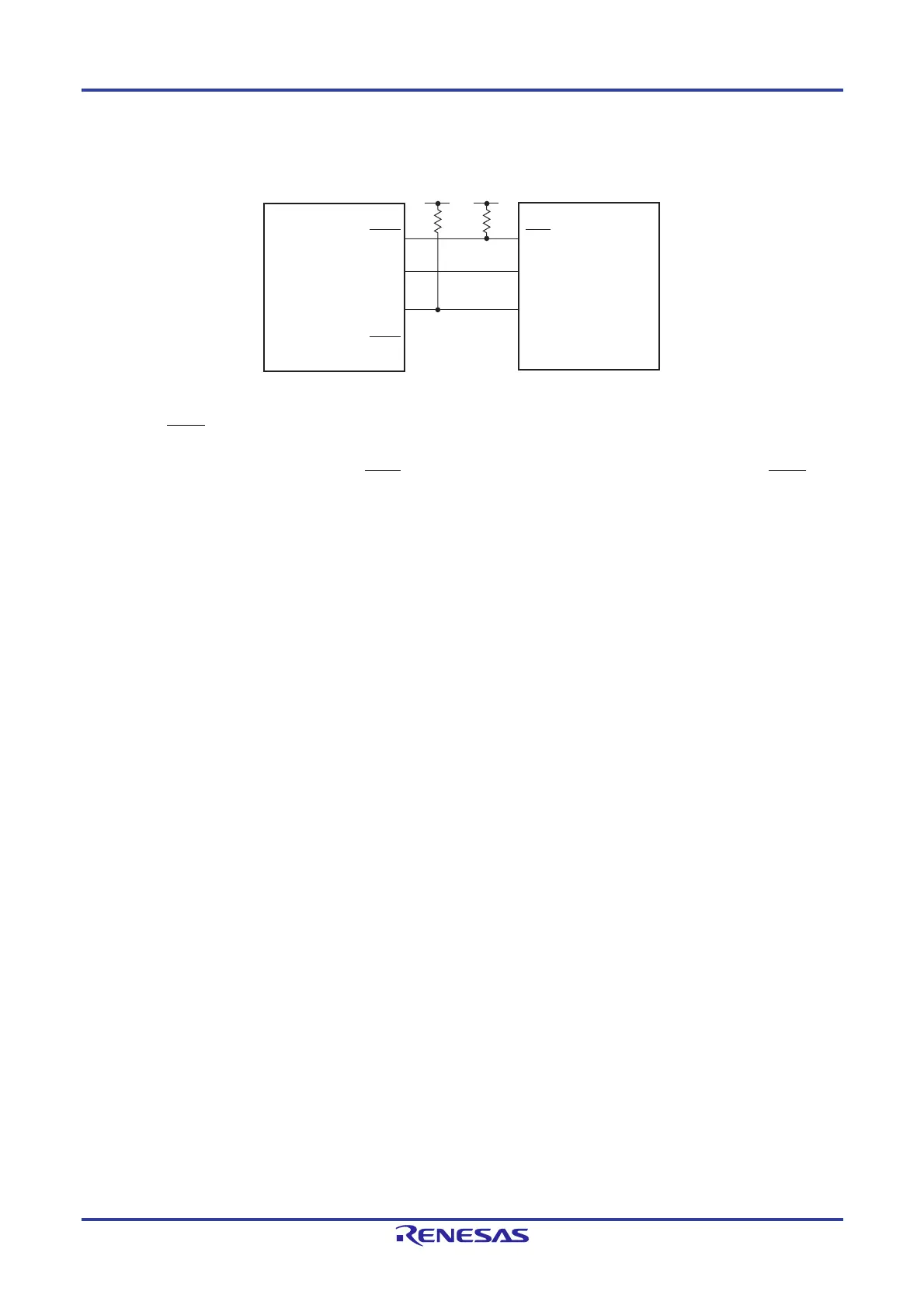

CSI mode connection diagram (during communication at different potential)

Caution Select the TTL input buffer for the SIp pin and N-ch open-drain output mode for the SOp pin and

SCKp pin.

Remarks 1. Rb [Ω]: Communication line (SCKp, SOp) pull-up resistance, Cb [F]: Communication line (SOp, SCKp) load

capacitance, V

b [V]: Communication line voltage

2. p: CSIp (p = 00, 01, 10, 11), m: Unit m (m = 0, 1), n: Channel n (n = 0, 1)

3. AC characteristics of the serial array unit during communication at different potential in CSI mode are

measured with the

VIH and VIL below:

When 4.0 V  EVDD0  5.5 V, 2.7 V  Vb  4.0 V: VIH = 2.2 V, VIL = 0.8 V

SCKp

SOp

SCK

User's deviceSIp SO

RL78

microcontroller

SSIp
