RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 217

Dec 10, 2015

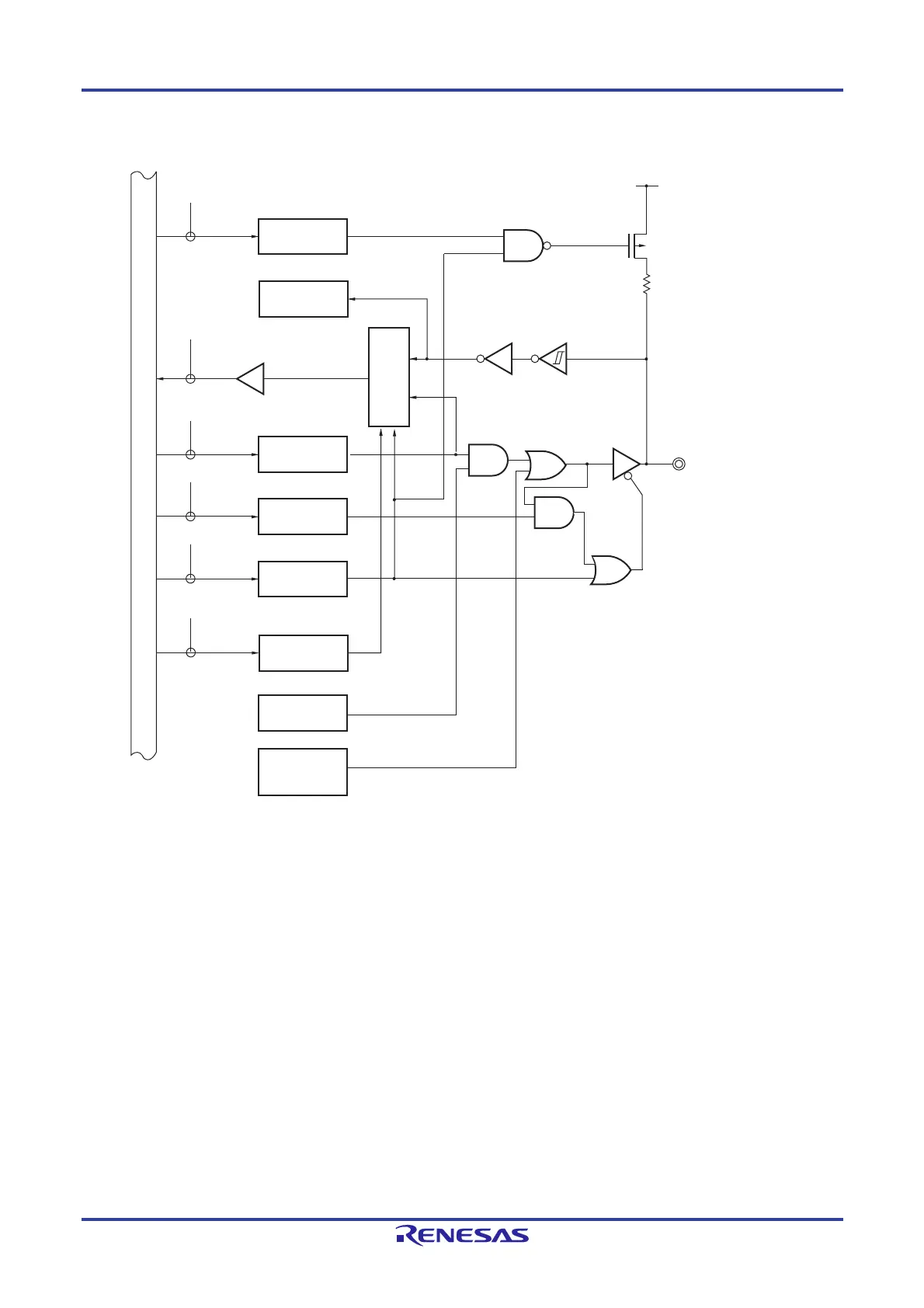

Figure 4-10. Block Diagram of P15

PORT

PU15

P15

PM15

P-ch

PU1

PM1

POM

POM15

POM1

PMS

PMS0

Alternate function

TXD0/SO00

P15/TI05/TO05/

TRDIOA1/SO00/

TXD0/TOOLTXD/

RTC1HZ/(TRDIOA0)

Alternate function

TO05/TRDIOA1

/RTC1HZ/(TRDIOA0)

Alternate function

Internal bus

Selector

Output latch

P1: Port register 1

PU1: Pull-up resistor option register 1

PM1: Port mode register 1

POM1: Port output mode register 1

PMS: Port mode select register

RD: Read signal

WRxx: Write signal
