RL78/F13, F14 CHAPTER 4 PORT FUNCTIONS

R01UH0368EJ0210 Rev.2.10 264

Dec 10, 2015

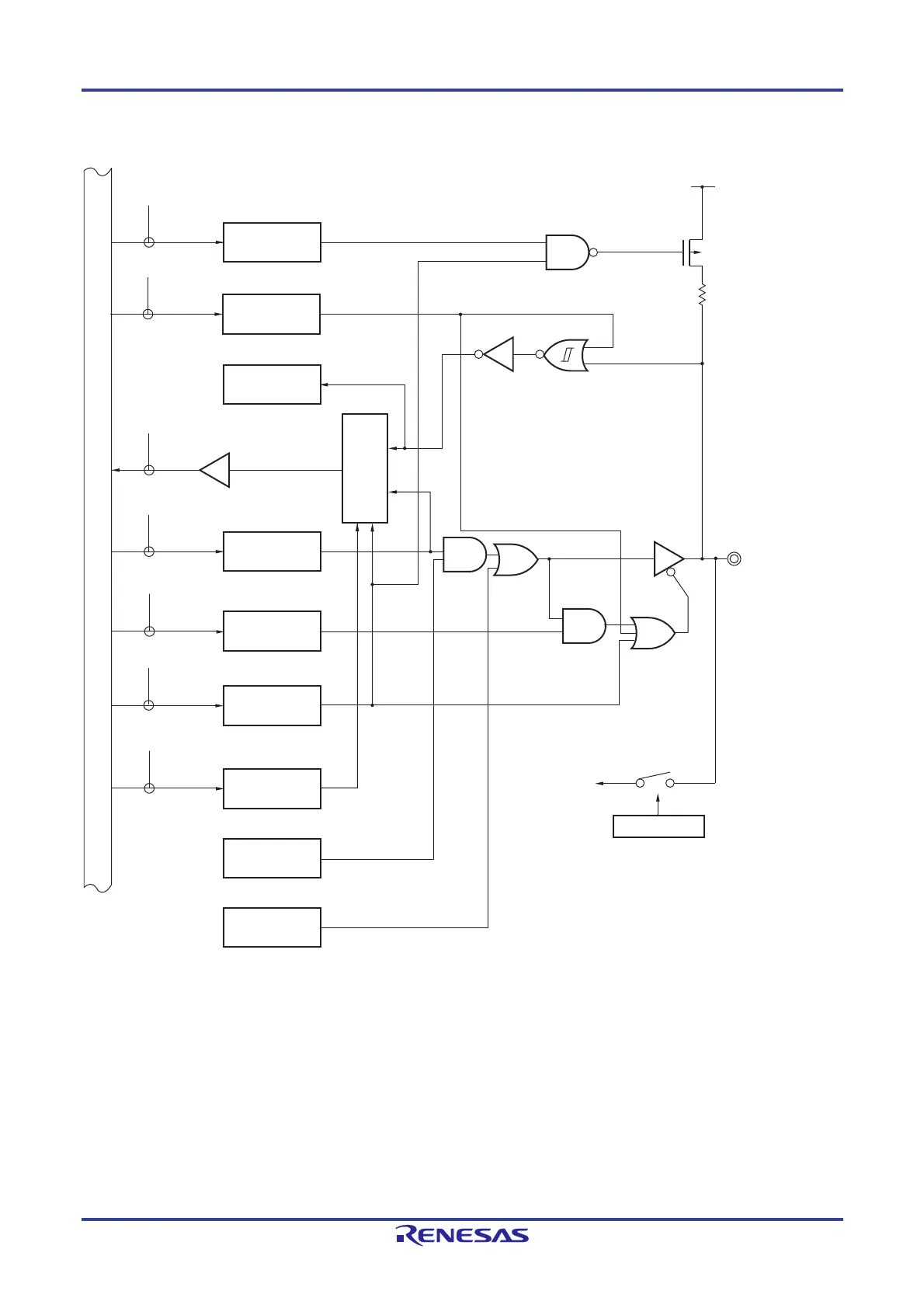

Figure 4-43. Block Diagram of P72

P72/ANI28/KR2

(CTXD0)/SO11/

SNZOUT6

PORT

PU72

(KR2)

P72

P-ch

PU7

PM7

POM72

POM7

POM

PM72

PMC

PMC7

PMC72

PMS

PMS0

SNZOUT6

SO11/(CTXD0)

Internal bus

Output latch

Alternate function

Selector

A/D converter

ADS

ADS4 to ADS0

P7: Port register 7

PU7: Pull-up resistor option register 7

PM7: Port mode register 7

POM7: Port output mode register 7

PMC7: Port mode control register 7

PMS: Port mode select register

ADS: Analog input channel specification register

RD: Read signal

WRxx: Write signal
