RL78/F13, F14 CHAPTER 5 CLOCK GENERATOR
R01UH0368EJ0210 Rev.2.10 398
Dec 10, 2015

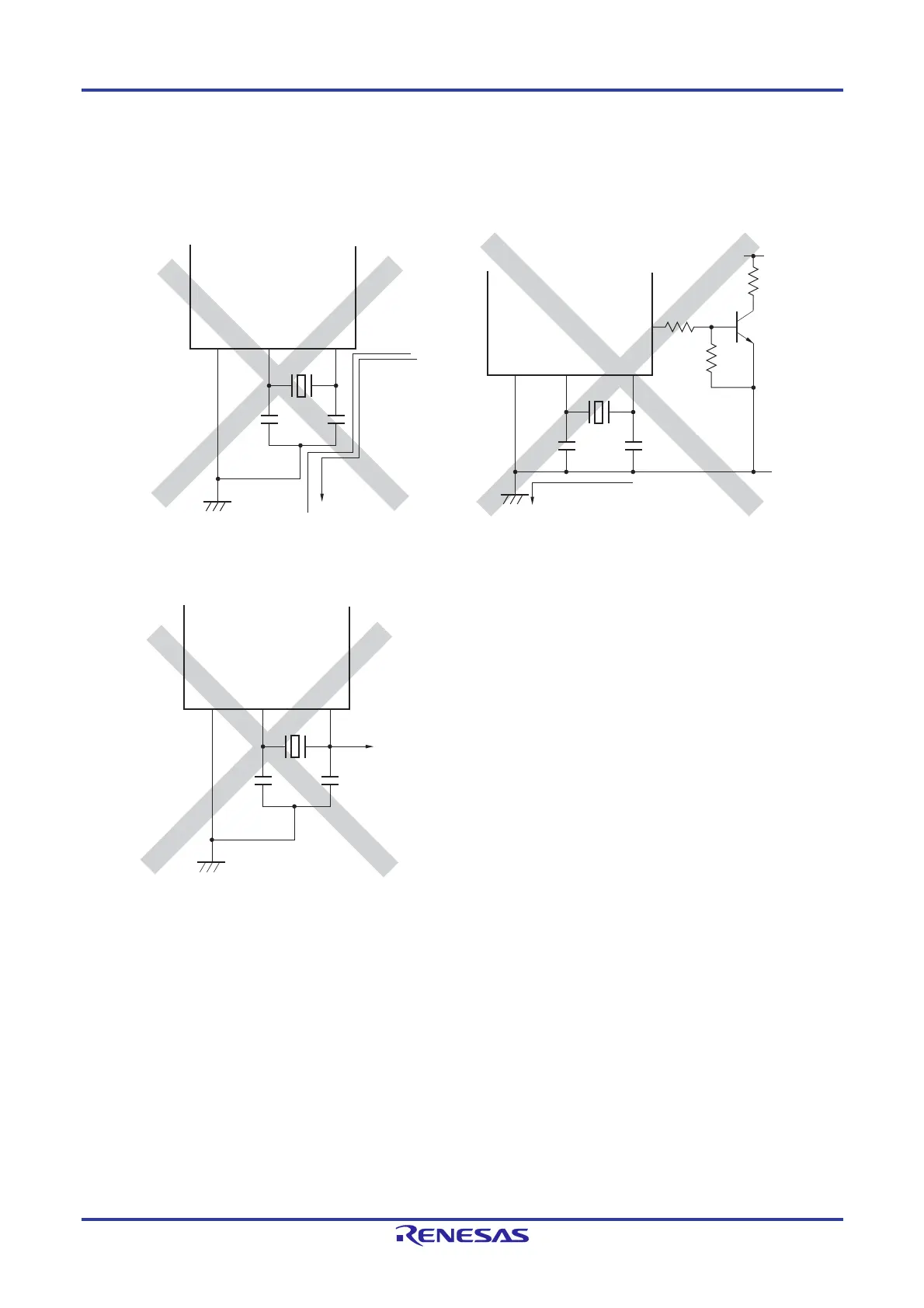

Figure 5-25. Examples of Incorrect Resonator Connection (2/2)
(e) Wiring near high alternating current (f) Current flowing through ground line of oscillator
(potential at points A, B, and C fluctuates)
(g) Signals are fetched
Caution When X2 and XT1 are wired in parallel, the crosstalk noise of X2 may increase with XT1, resulting in
malfunctioning.
Remark When using the subsystem clock, replace X1 and X2 with XT1 and XT2, respectively. Also, insert resistors in
series on the XT2 side.
VSS X1 X2
High current
VSS X1 X2
AB C
Pmn
V
DD
High current
V
SS
X1 X2
To Next Page
