RL78/F13, F14 CHAPTER 15 SERIAL ARRAY UNIT

R01UH0368EJ0210 Rev.2.10 951

Dec 10, 2015

(3) Processing flow (in single-transmission/reception mode)

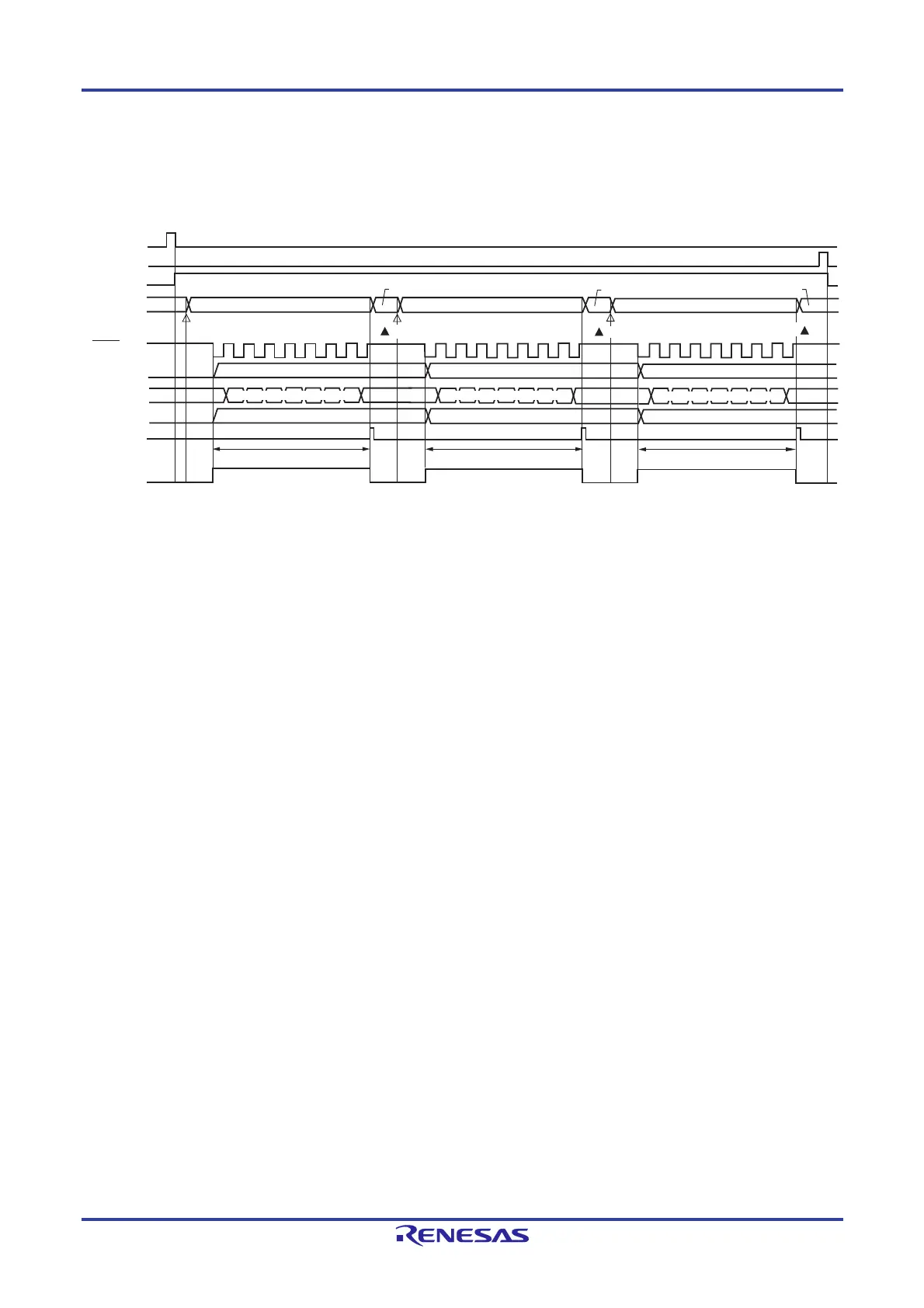

Figure 15-116. Timing Chart of Slave Transmission/Reception (in Single-Transmission/Reception Mode)

(Type 1: DAPmn = 0, CKPmn = 0)

Remark m: Unit number (m = 0, 1), n: Channel number (n = 0, 1), p: CSI number (p = 00, 01, 10, 11),

mn = 00, 01, 10, 11

SSmn

SEmn

SDRmn

SCKp pin

SIp pin

Shift

INTCSIp

TSFmn

SOp pin

STmn

Data transmission/reception (8-bit length)

Receive data 3

Receive data 2

Receive data 1

Transmit data 1

Transmit data 2 Transmit data 3

Receive data 2

Receive data 3

Write

Read

Write

Read

Write

Transmit data 3

Transmit data 2

Transmit data 1

Reception & shift operation

Receive data 1

Data transmission/reception (8-bit length)
