Scanner Unit
D023/D025 4
-24
SM
4.5.2

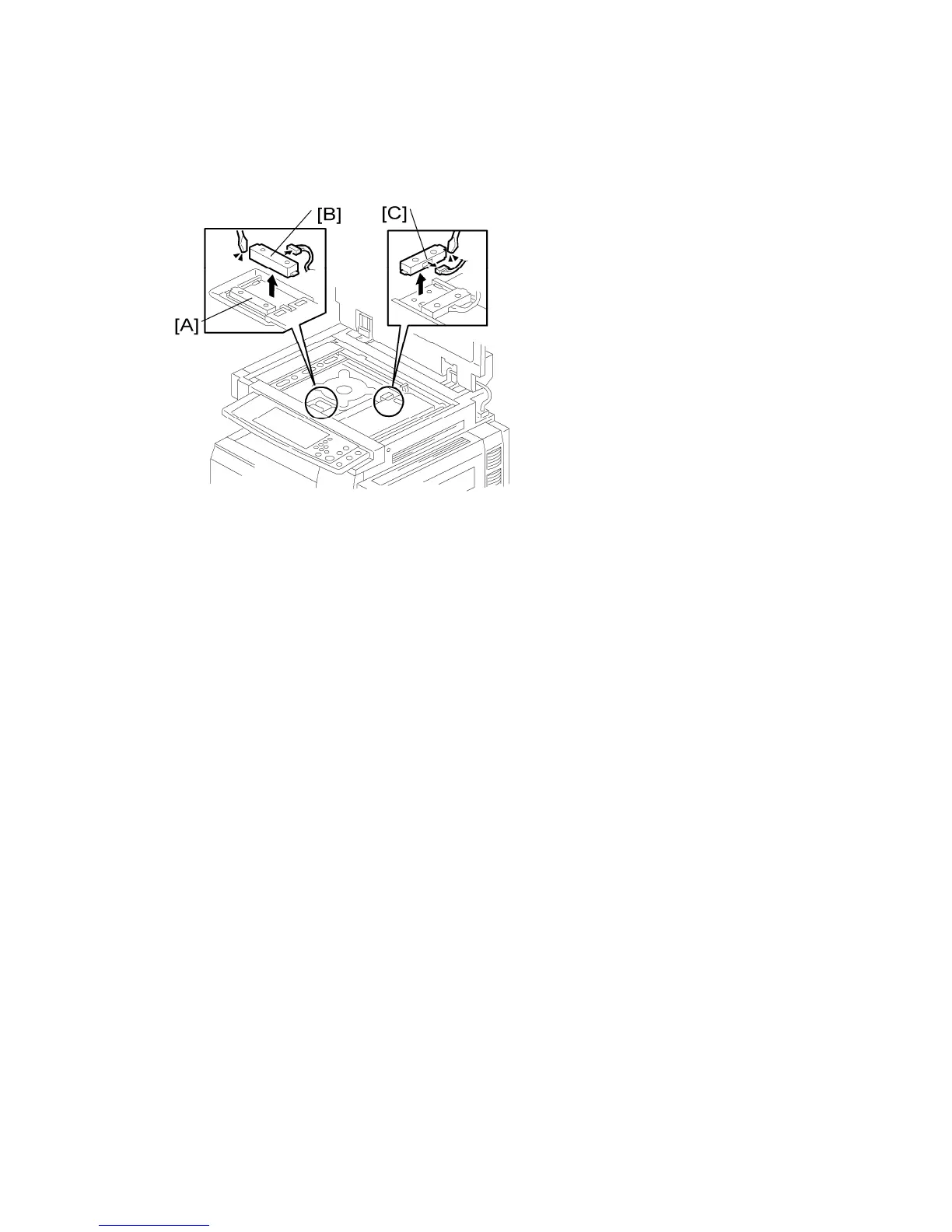

ORIGINAL LENGTH/WIDTH SENSORS
1.
Exposure glass with left scale (
p.4-20 "Exposure Glass")
2.
Original length sensor bracket [A] (
x 1,
=
x1)
3.
Original length sensors [B] (snap,
x 1 each)
4.
The number of the original length s
ensors depends on the model; 3 for EU, 2 for
others.
5.
Original width sensors [C] (snap,
x 1,
x1 each)
