1-Bin Tray Unit (D414)
SM 2-43 D023/D025
Installation
2.11 1-BIN TRAY UNIT (D414)

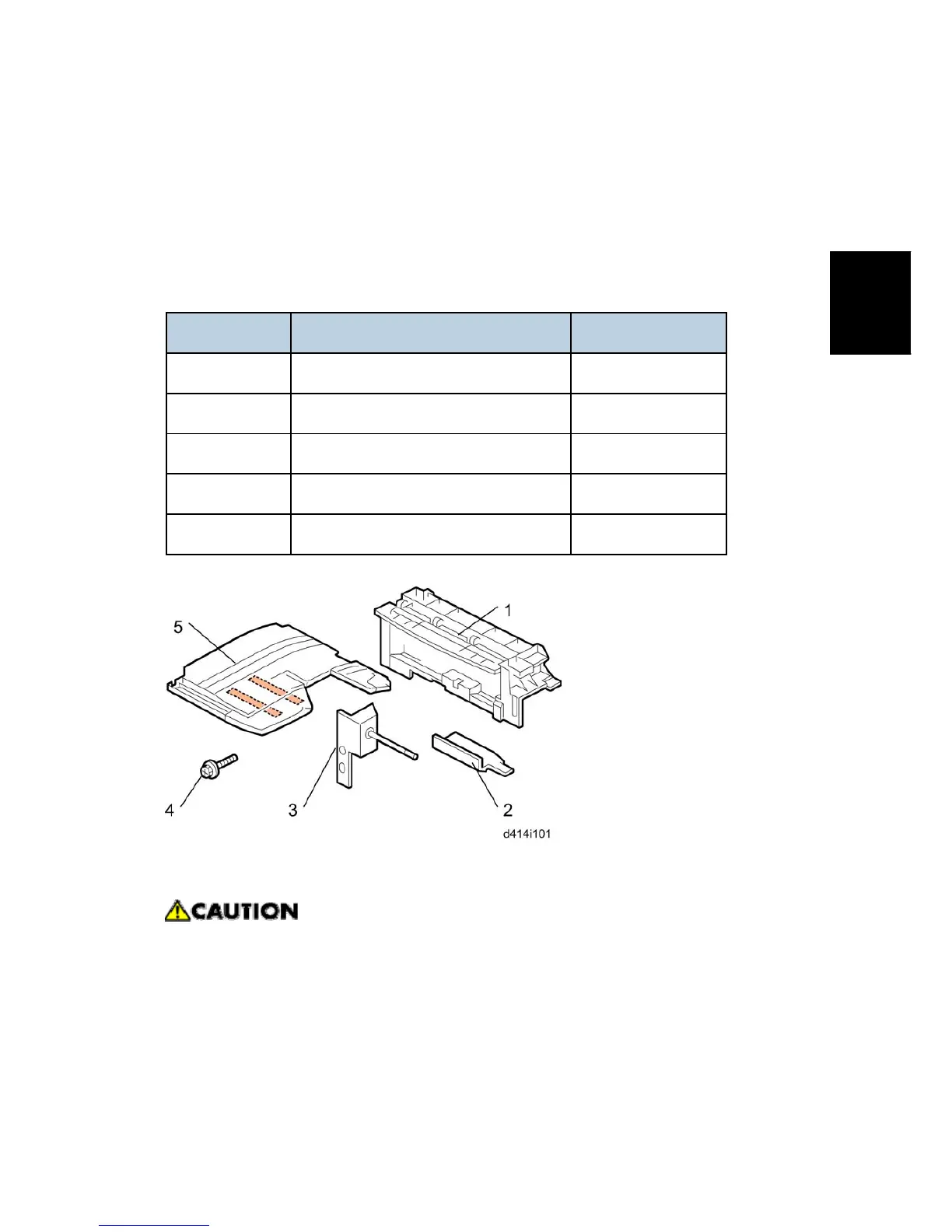

2.11.1 COMPONENT CHECK
Check the quantity and condition of the components against the following list.
No. Description Q’ty
1 1-Bin Tray Unit 1
2 End-Fence 1
3 Tray Support Bar 1
4 Screws (M3 X 16) 2
5 Tray 1
2.11.2 INSTALLATION PROCEDURE
 Unplug the copier power cord before starting the following procedure.
If the bridge unit (D386) has already been installed in the machine, remove it before
installing 1-bin tray unit (D414). This will make it easier for you to do the following
procedure.
1. Remove all tapes.
2. Open the right door of the machine.
To Next Page
