Electrical Components
SM 4-145
D023/D025
Repla
cement
&
Adjustment

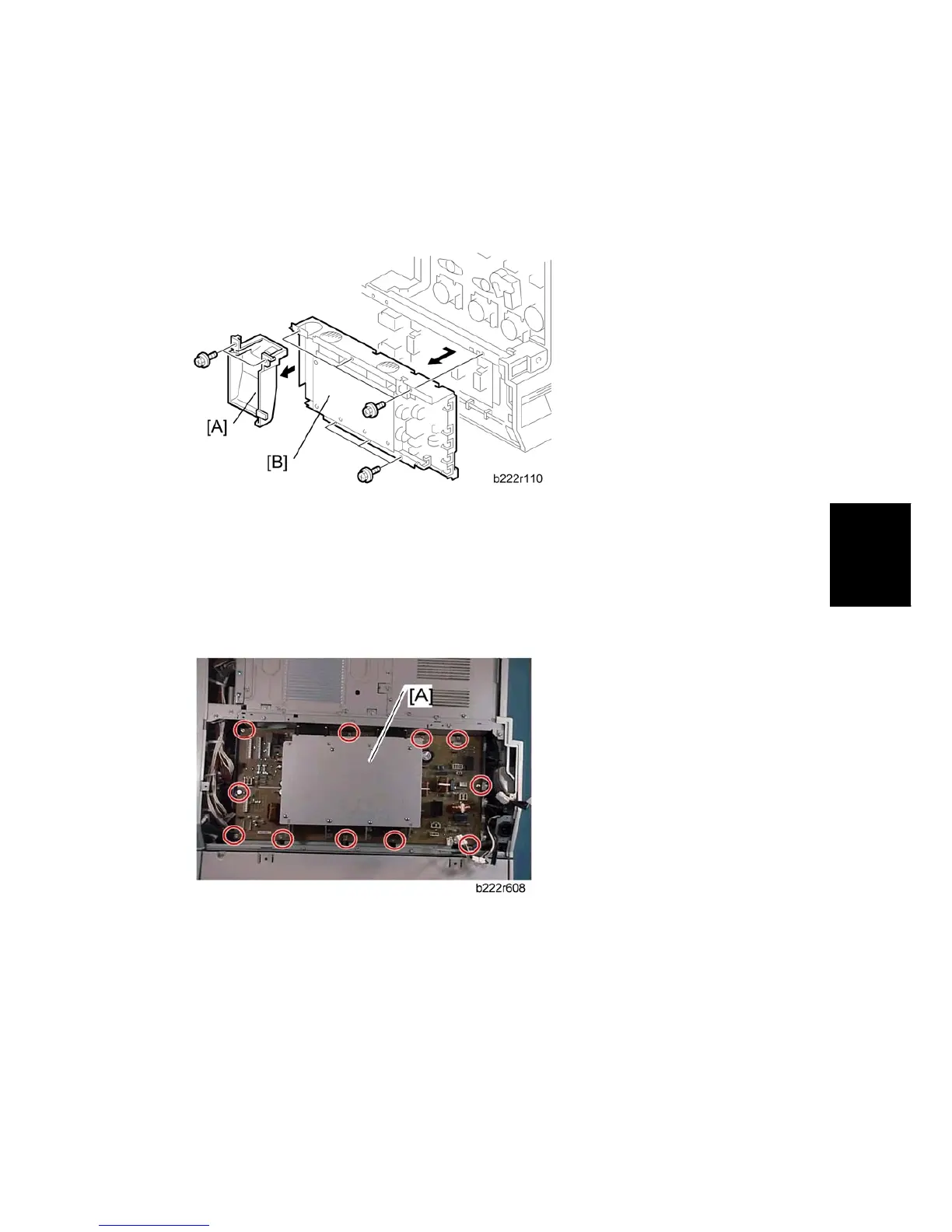

4.14.7 PSU
PSU bracket
1.
Rear cover (
p.4-15 "Rear Cover")
2.
V
entilation duct [A] (
x 2)
3.
PSU bracket [B] (
x 6,
=
x
All,
x
All)
PSU board
1.
Rear cover (
p.4-15 "Rear Cover")
2.
V
entilation duct (see "PSU bracket")
3.
PSU board [A] (
x 1
1, all
s, all
=
s)
320
