Ricoh D025 - When Removing the Controller Box

Electrical Components
SM 4-141 D023/D025
Replacement
&
Adjustment

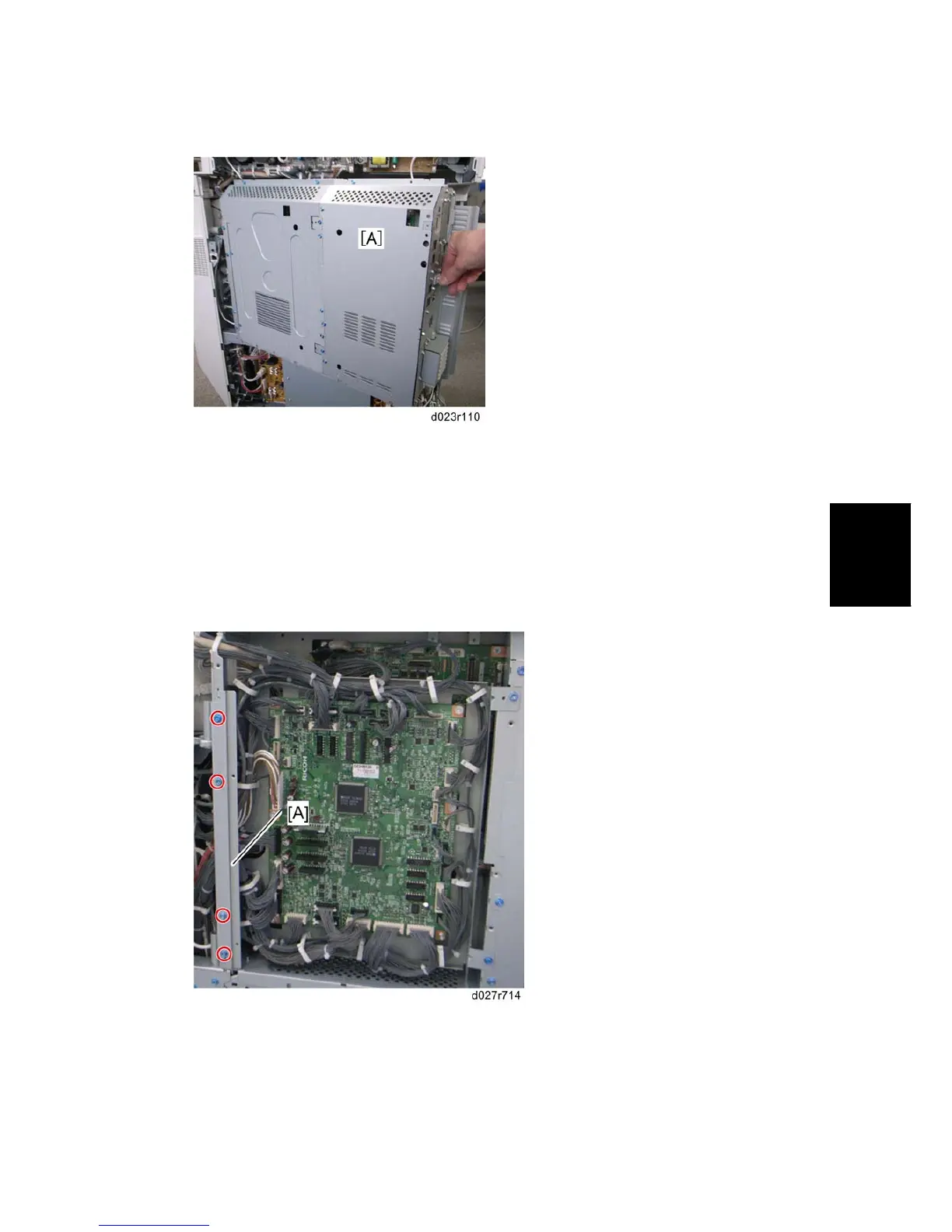

4. Open the controller box [A].
When removing the controller box
1. Rear cover (p.4-15 "Rear Cover")
2. Scanner rear cover (p.4-21 "Exposure Lamp")
3. Right rear cover (p.4-15 "Right Rear Cover")
4. Controller box right cover (p.4-121 "Controller Box Right Cover ")
5. Remove the controller box stay [A] ( x 4).
