Electrical Components
SM 4-143
D023/D025
Repla
cement
&
Adjustment
11.
Lift up the controller box [A], and then remove it.
4.14.5
IOB (IN/OUT BOARD)
1.
Rear cover (
p.4-15 "Rear Cover")
2.
Scanner rear cover (
p.4-21 "Exposure Lamp")
3.
Controller box right cover (
p.4-121 "
Controller Box Right Cover ")
4.

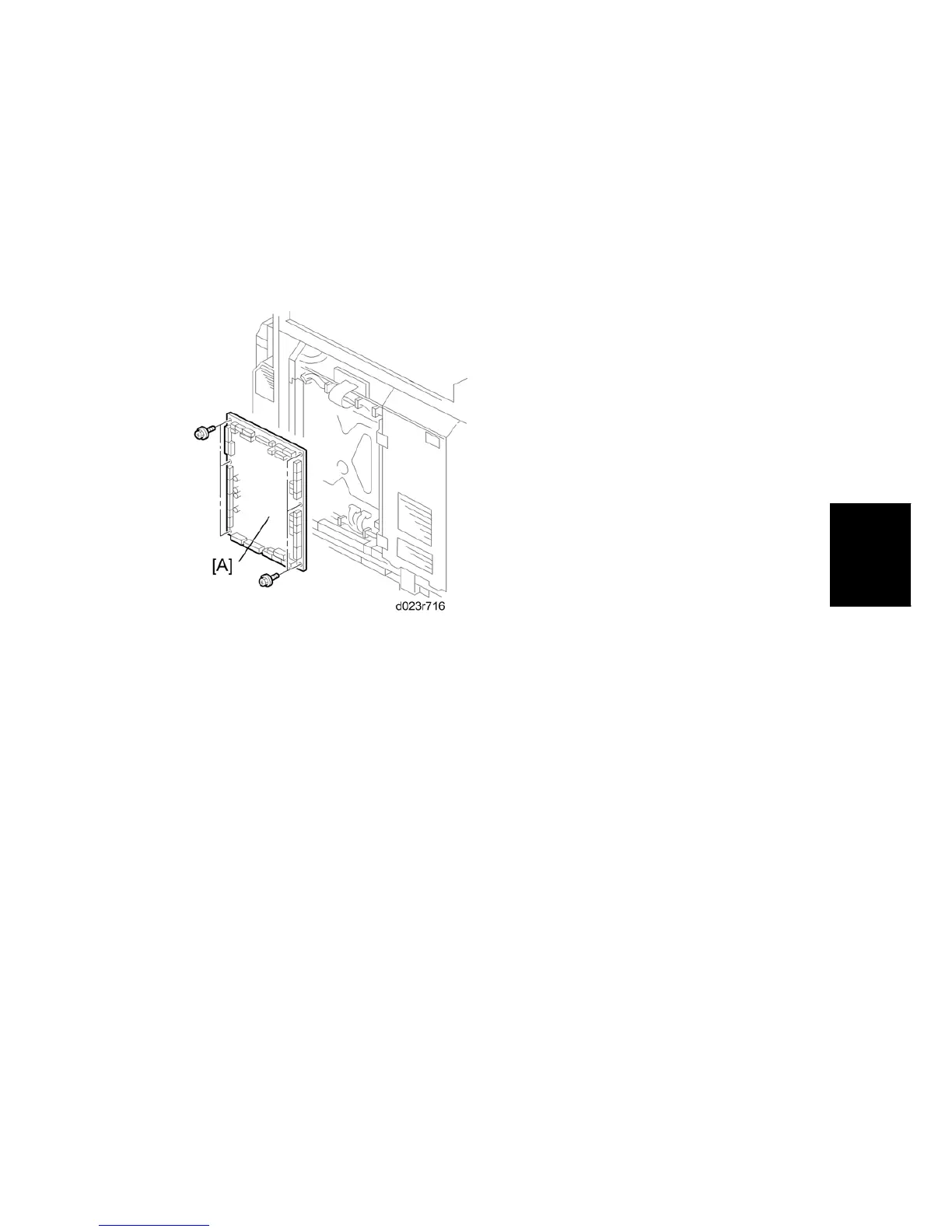

IOB [A] (
x 6,
All
s)
318
320
