Drive Unit
D023/D025 4
-84
SM
4.10.4 DRUM/DEVELOPMENT
MO
TORS FOR M, C, AND Y
1.
Rear cover (
"p.4-15")
2.
PSU bracket (
"p.4-126")
3.
Open the controller box.
4.

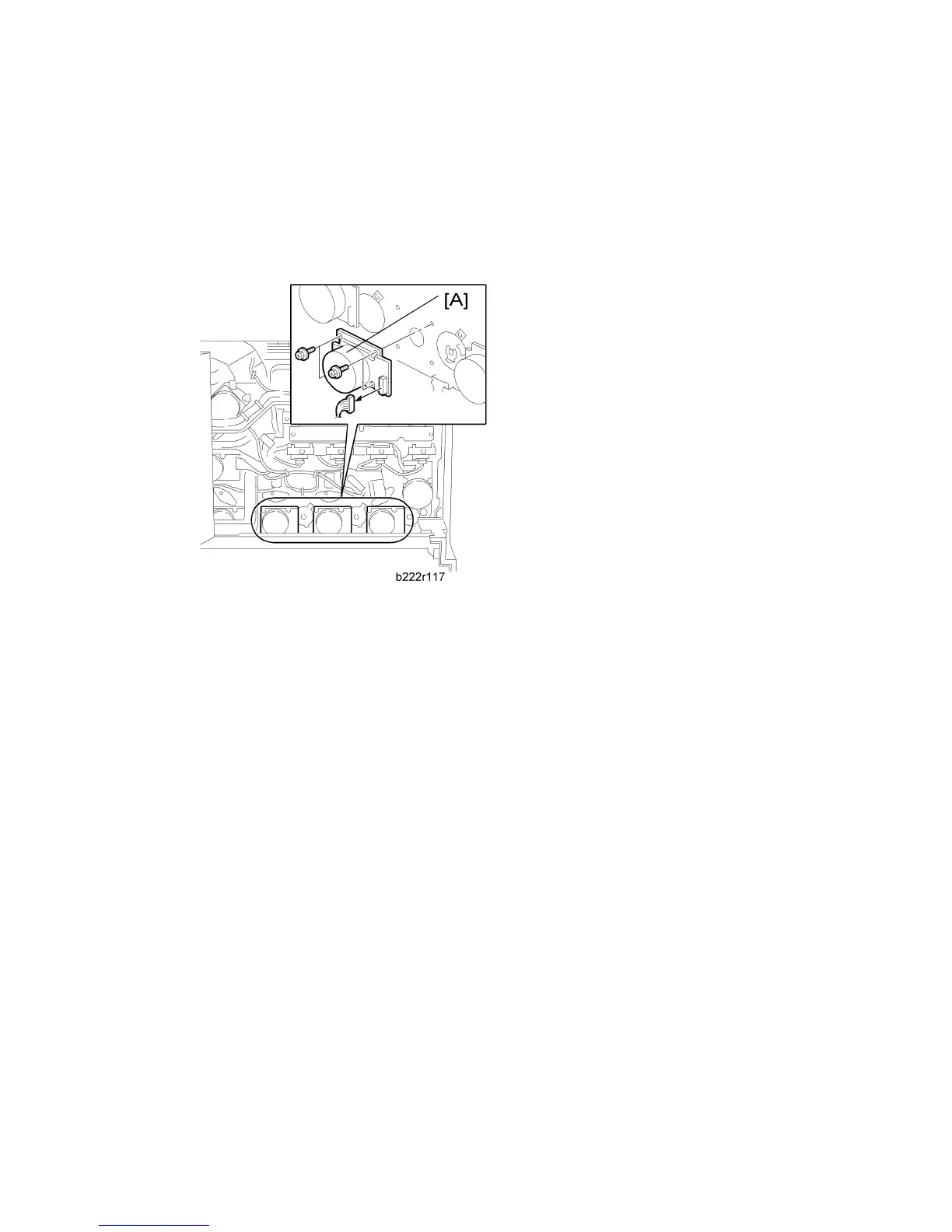

Drum/Development motors (thr
ee motors, one each for MCY) [A] (
x 4,
x 1 each)
