Ricoh D025 User Manual

Scanner Unit
SM 4-25 D023/D025
Replacement
&
Adjustment
4.5.3 EXPOSURE LAMP
1. Rear cover ( p.4-15 "Rear Cover")
2. Operation panel ( p.4-16 "Operation Panel")
3. Exposure glass ( p.4-20 "Exposure Glass")

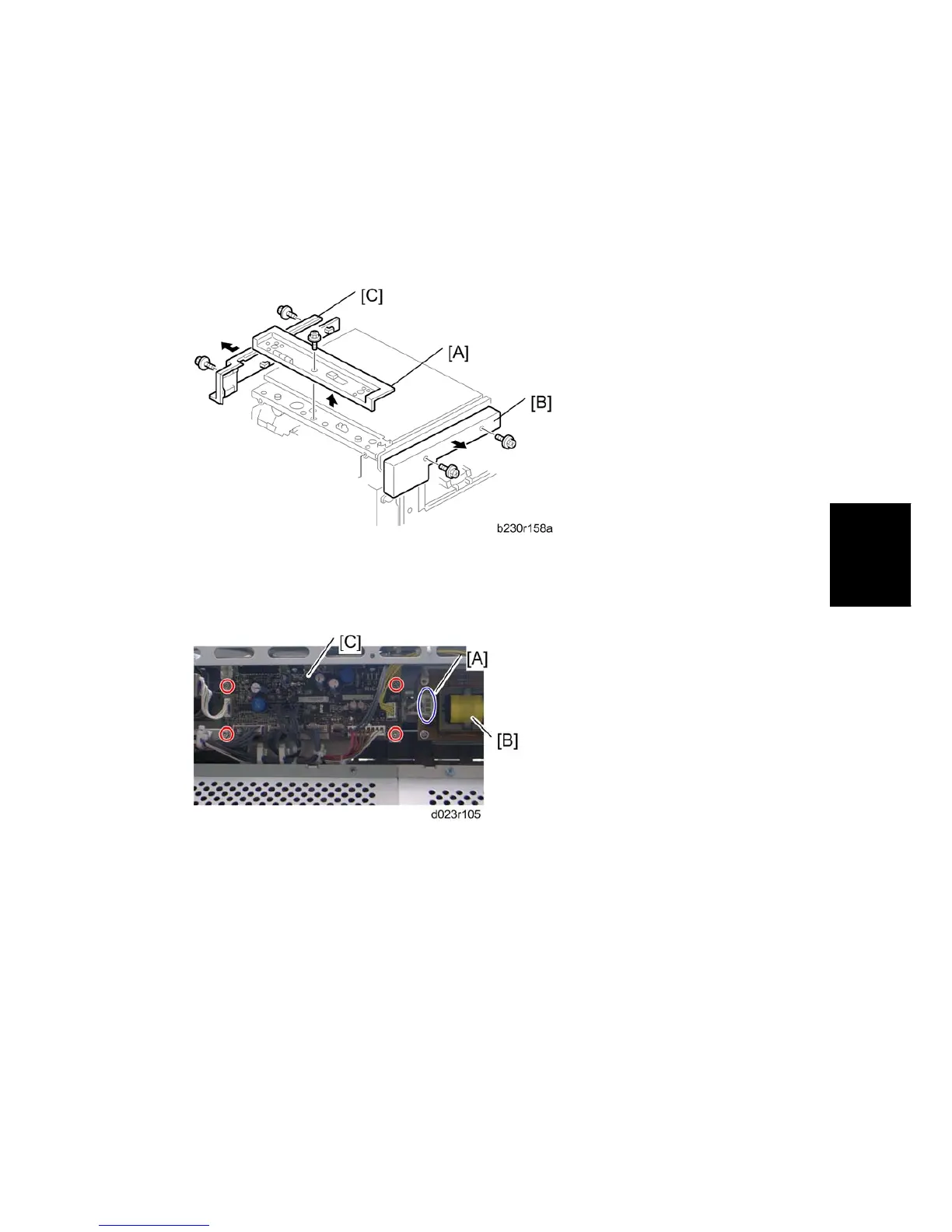

4. Scanner rear cover [A] ( x 1)
5. Scanner left cover [B] ( x 2)
6. Scanner right cover [C] ( x 2)
7. Disconnect the connector [A] from the lamp stabilizer [B].
8. SIO [C] ( x 4,  x All)
