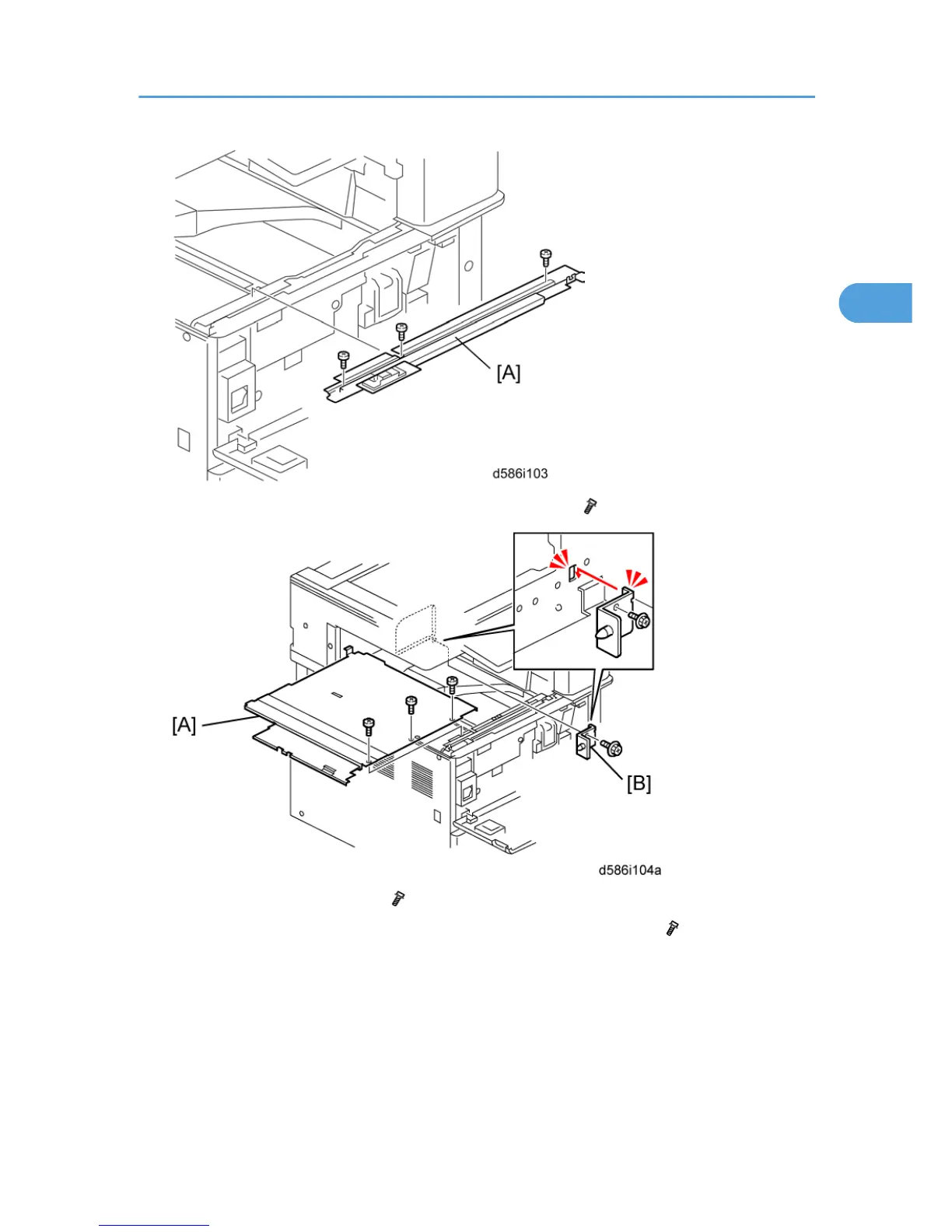

7. Install the guide rail [A] in the front frame of the main machine ( bind screw x 3; M3x6).
8. Install the inner bottom plate [A] ( bind screw x 3; M3x6).
9. Install the positioning pin bracket [B] in the rear frame of the main machine ( x 1; M3x6).
