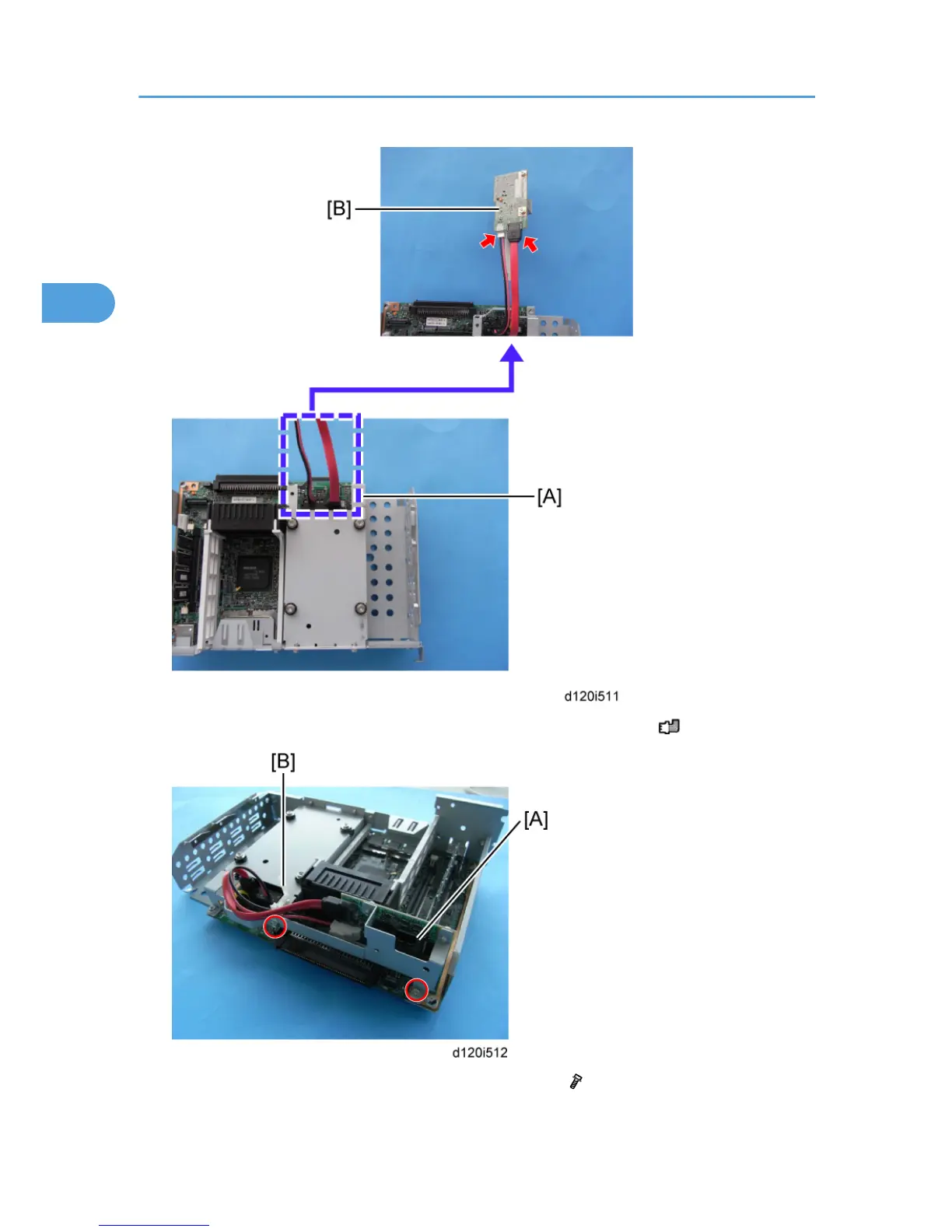

4. Connect the two cables [A] from the HDD unit to the connecting board [B] ( x 2).
5. Install the connecting board unit [A] on the controller board ( x 2).
6. Install the harness clamp [B] on the HDD unit.
2. Installation
146
2
