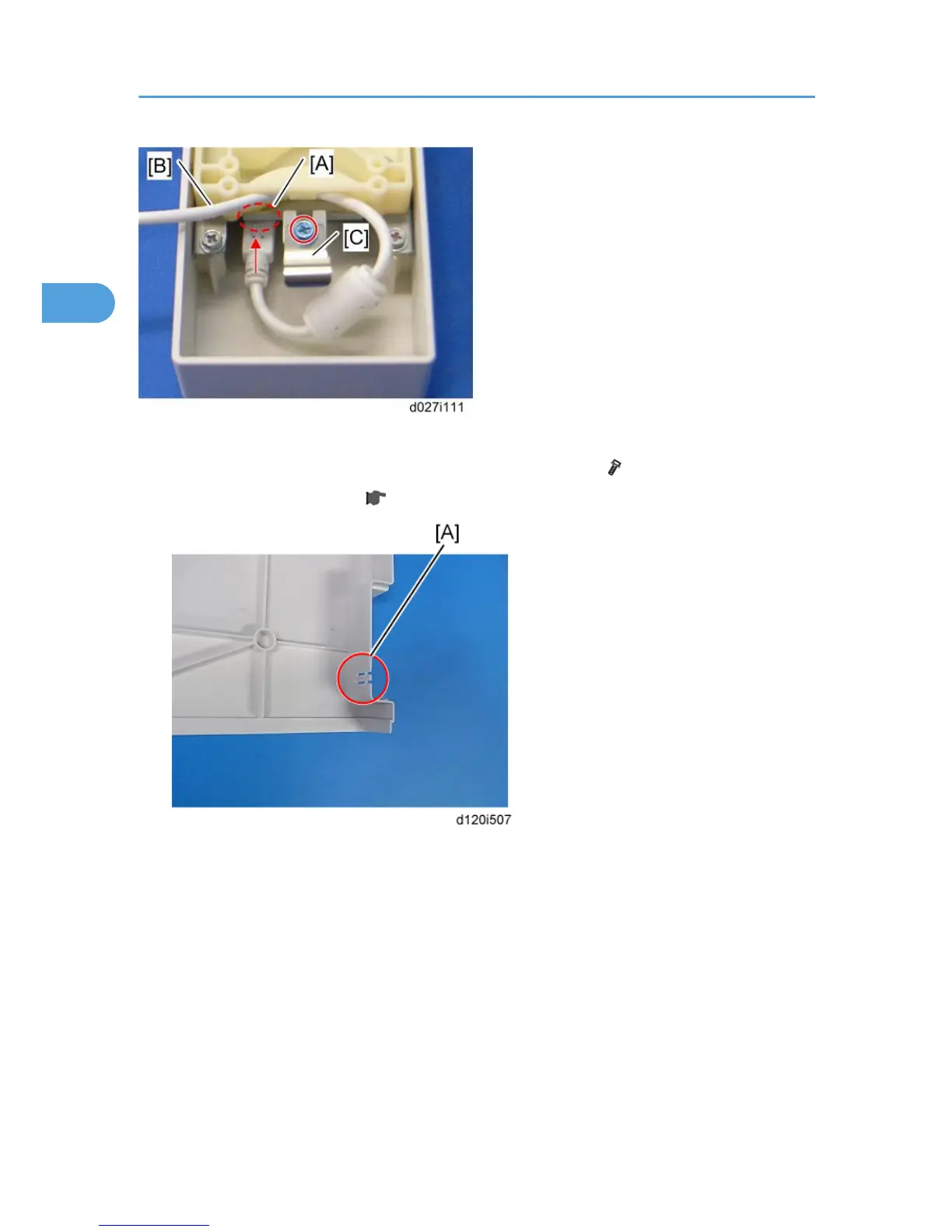

1. Connect the USB cable [B] to the USB slot [A] in the USB2.0/SD Slot as shown above.
2. Attach the ground plate [C] to the bracket of the USB2.0/SD Slot ( x 1: M3x6 blue).
3. Remove the upper left cover. ( p.180 "Upper Left Cover")
4. Remove the part [A] of the upper left cover with pliers or a similar tool.
