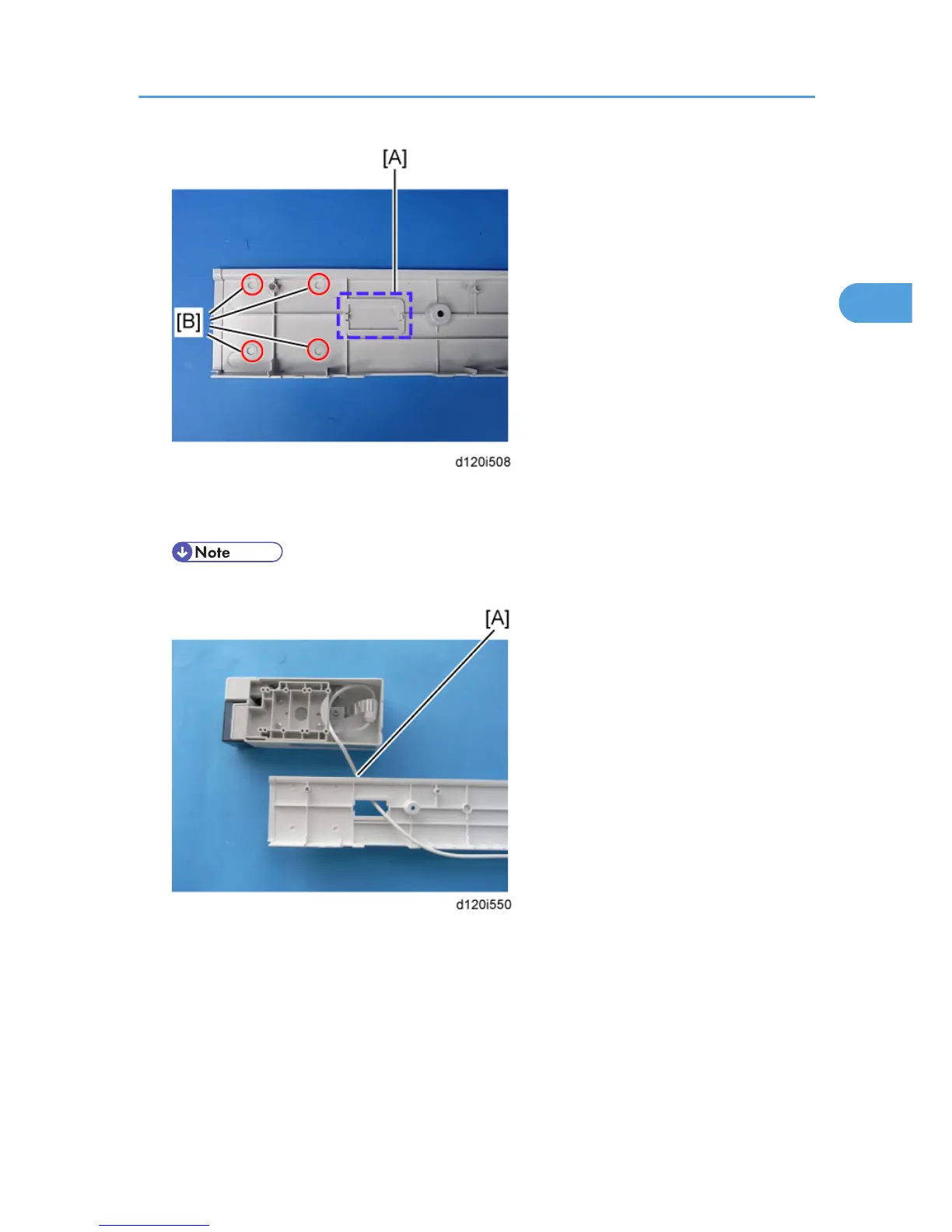

5. Remove the part [A] on the upper left cover.
6. Make four holes in the upper left cover with a screwdriver as shown [B].
• Smooth the four holes in the upper left cover as shown [B].
7. Put the USB cable [A] through the cutout in the upper left cover.
USB2.0/SD Slot Type H (D594)
157
2
