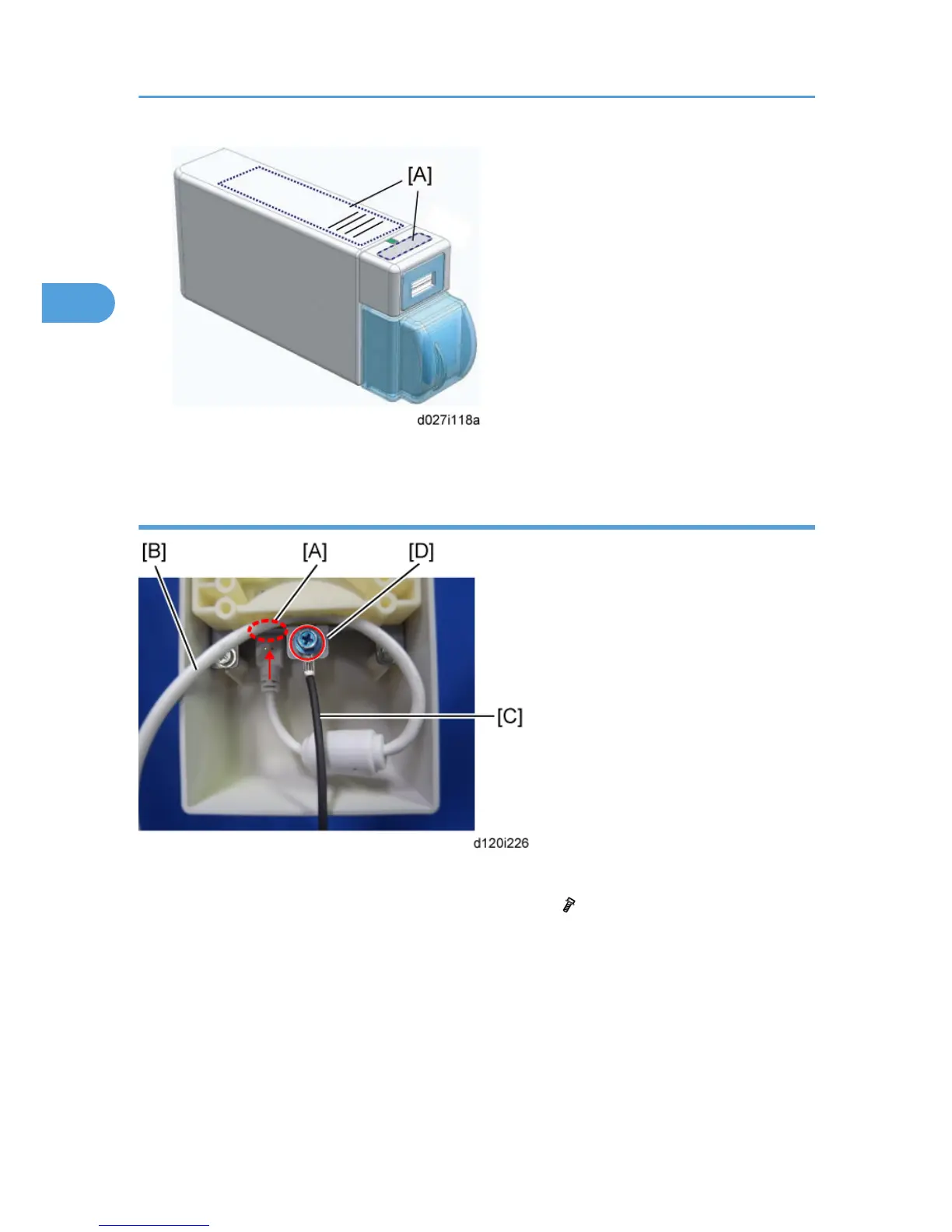

18. Attach the decals [A] to the USB2.0/SD Slot as shown above.
Installation if the optional booklet finisher has been installed
1. Connect the USB cable [B] to the USB slot [A] in the USB2.0/SD slot as shown above.
2.
Connect the ground wire [C] to [D] in the USB2.0/SD Slot (
x 1: M3x6 blue).
2. Installation
160
2
