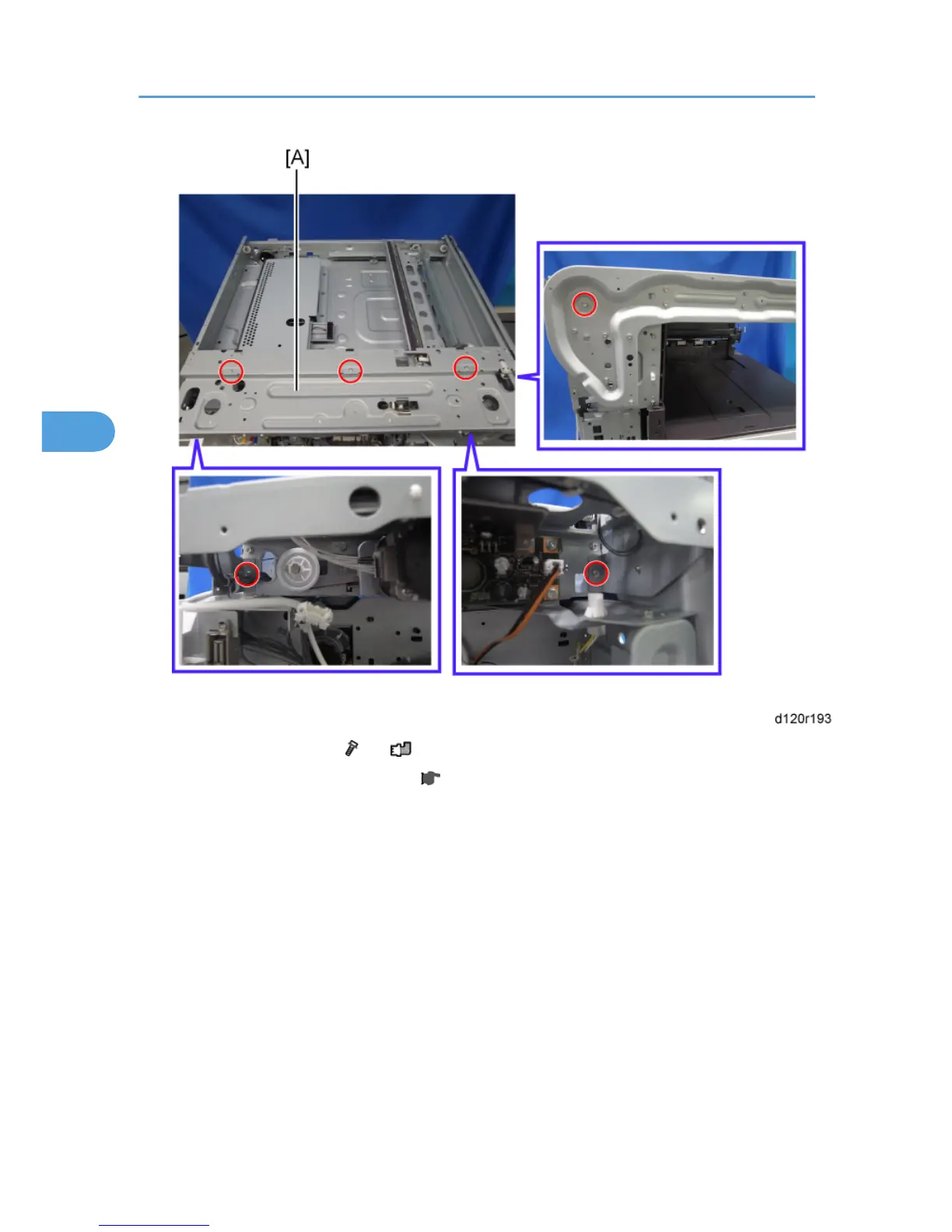

7. Remove the rear stay [A] ( x6, x all).
8. Remove the scanner motor assembly. ( p.194 "Scanner Motor")
4. Replacement and Adjustment
198
4
