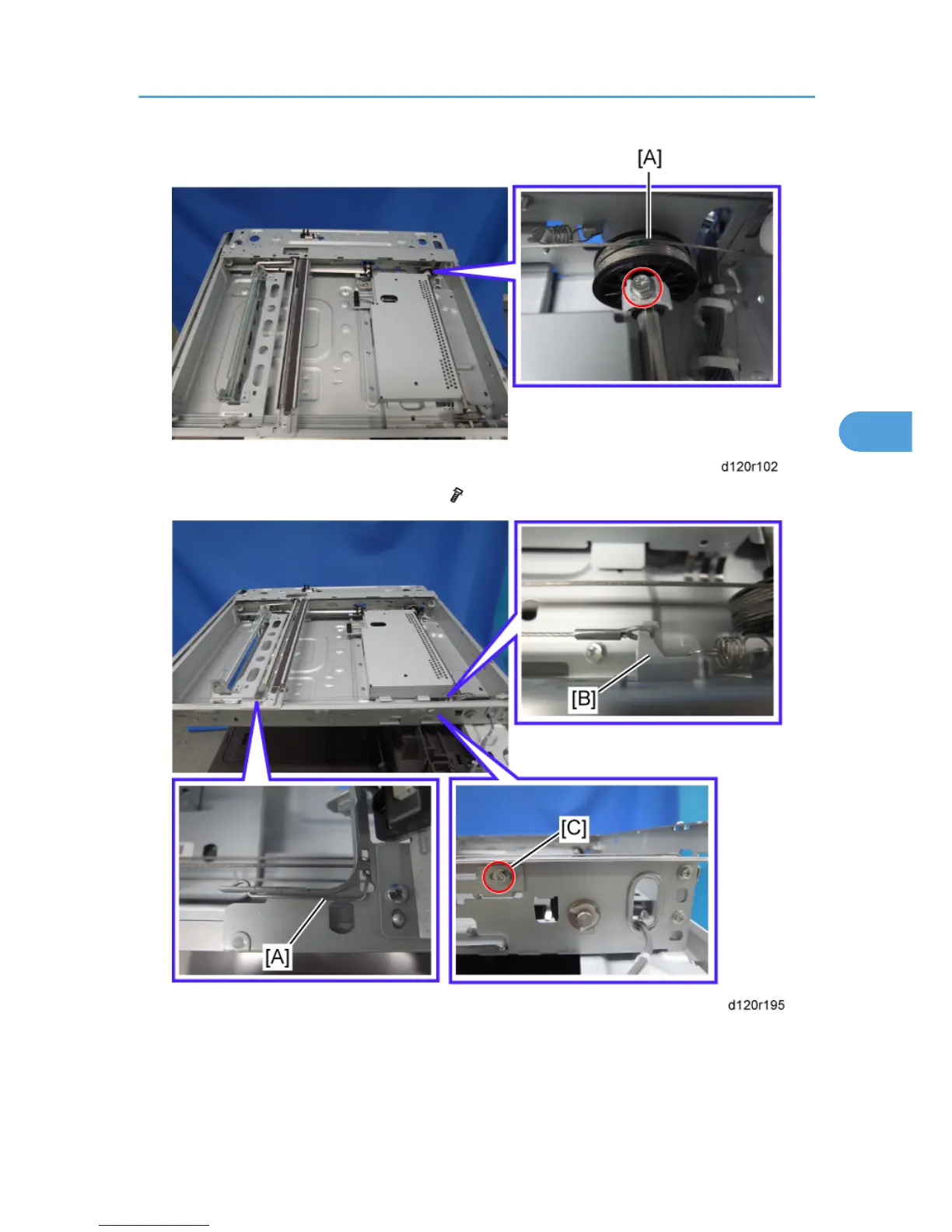

9. Remove the rear scanner drive pulley [A] ( x 1).
10. Remove the front scanner wire clamp [A].
11. Loosen the front scanner wire bracket [B] with screw [C].
Scanner Unit
199
4
