12. Remove the front scanner wire.

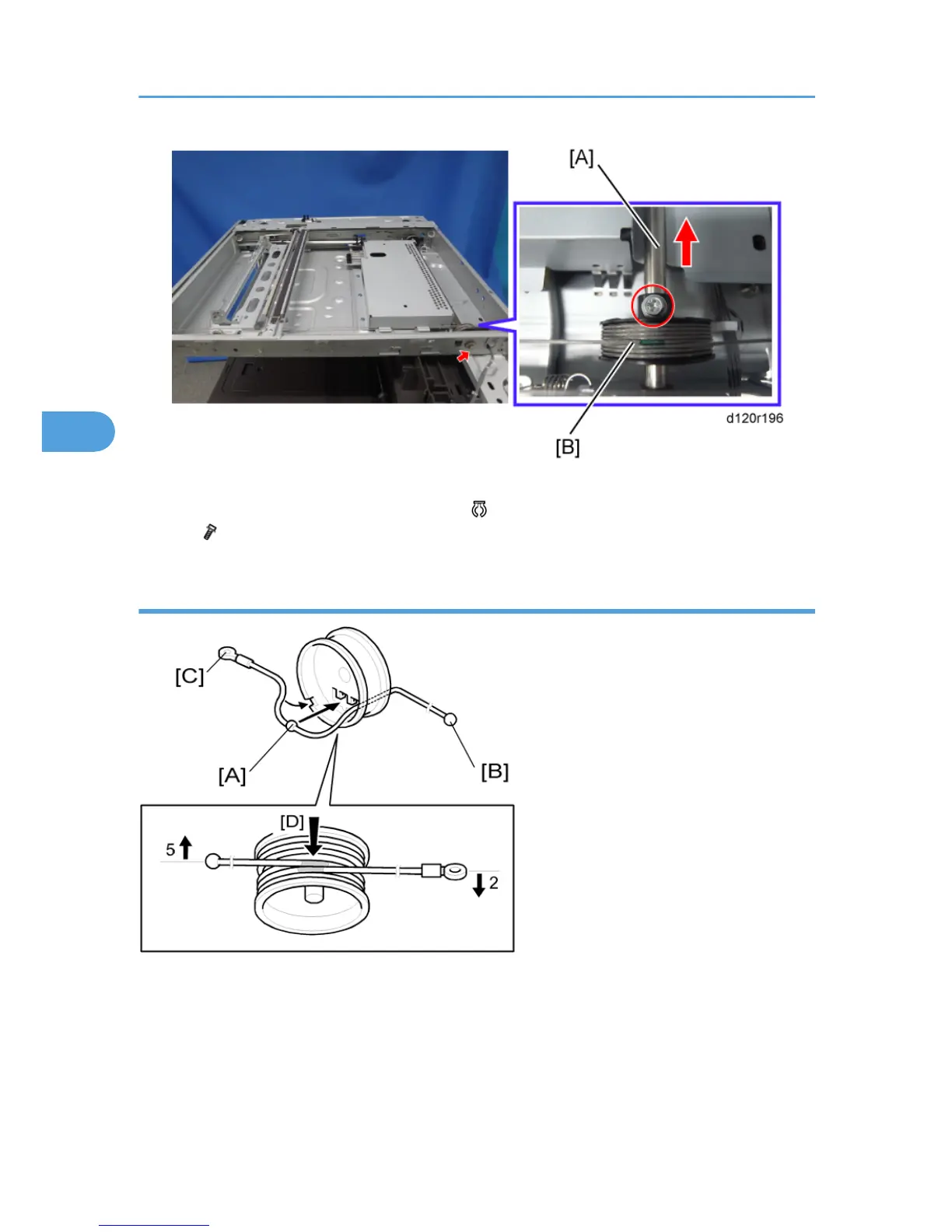

13. Move the shaft [A] in the red arrow direction ( x 1: at front), and remove the scanner drive pulley
[B] ( x 1).
Reinstalling the Front Scanner Wire
1. Position the center ball [A] in the middle of the forked holder.
2. Pass the right end (with the ball) [B] through the square hole. Pass the left end (with the ring) [C]
through the notch.
3. Wind the right end counterclockwise (shown from the machine's front) five times. Wind the left end
clockwise twice.
4. Replacement and Adjustment
200
4
