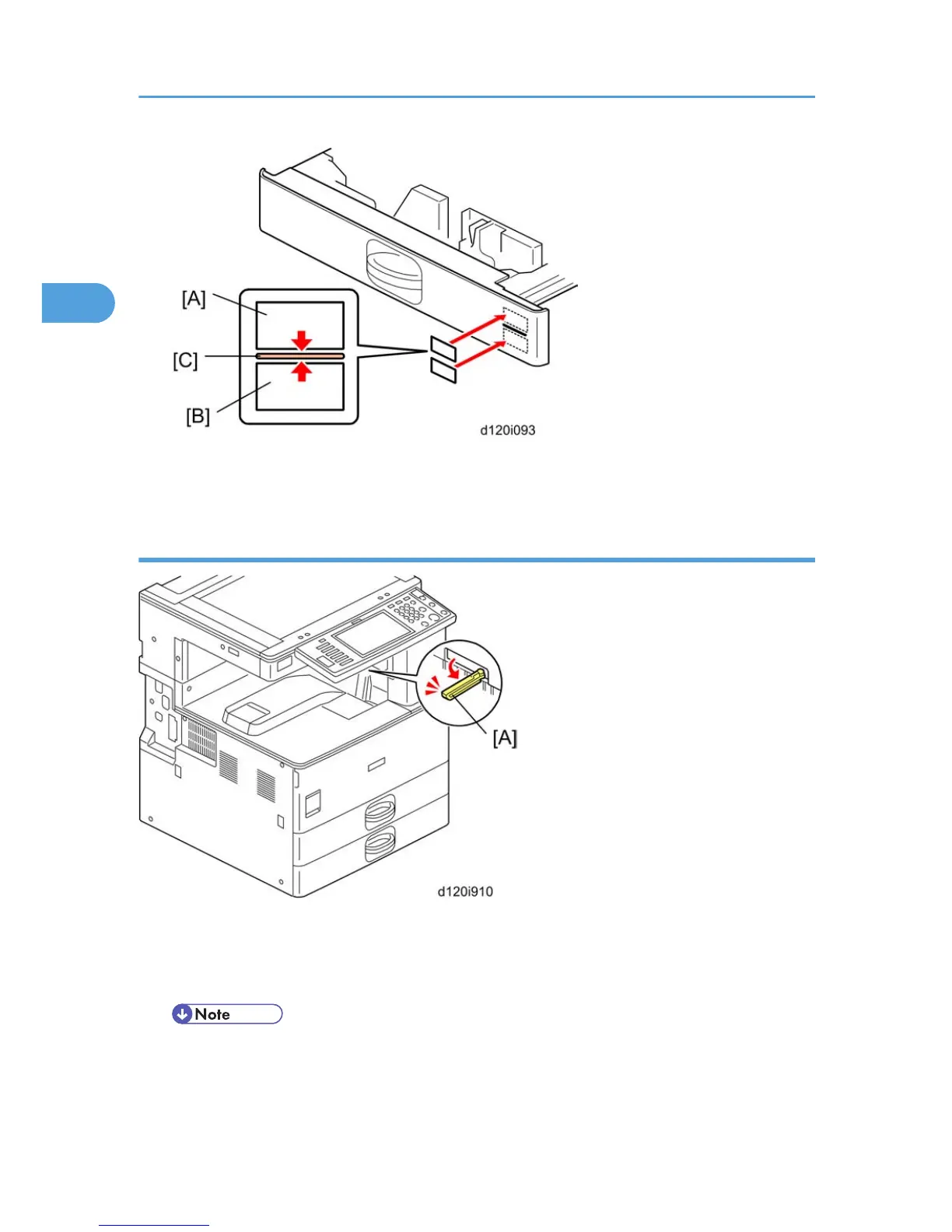

6. Attach the appropriate paper tray number decal [A] and paper size decal [B] above and below
the line [C] on the tray of the paper feed unit.
Completion
1. If the optional bridge unit will not be installed, swing the sensor feeler [A] out.
2. Install the optional ARDF or the optional platen cover (see ARDF (D578) or Platen Cover (D593)).
3. Pull out trays, and then adjust the side guides and end guide to match the paper size.
• To move the side guides, first pull out the tray fully, then push down the green lock at the rear
of the tray.
