Ricoh OR-C1 - Page 48

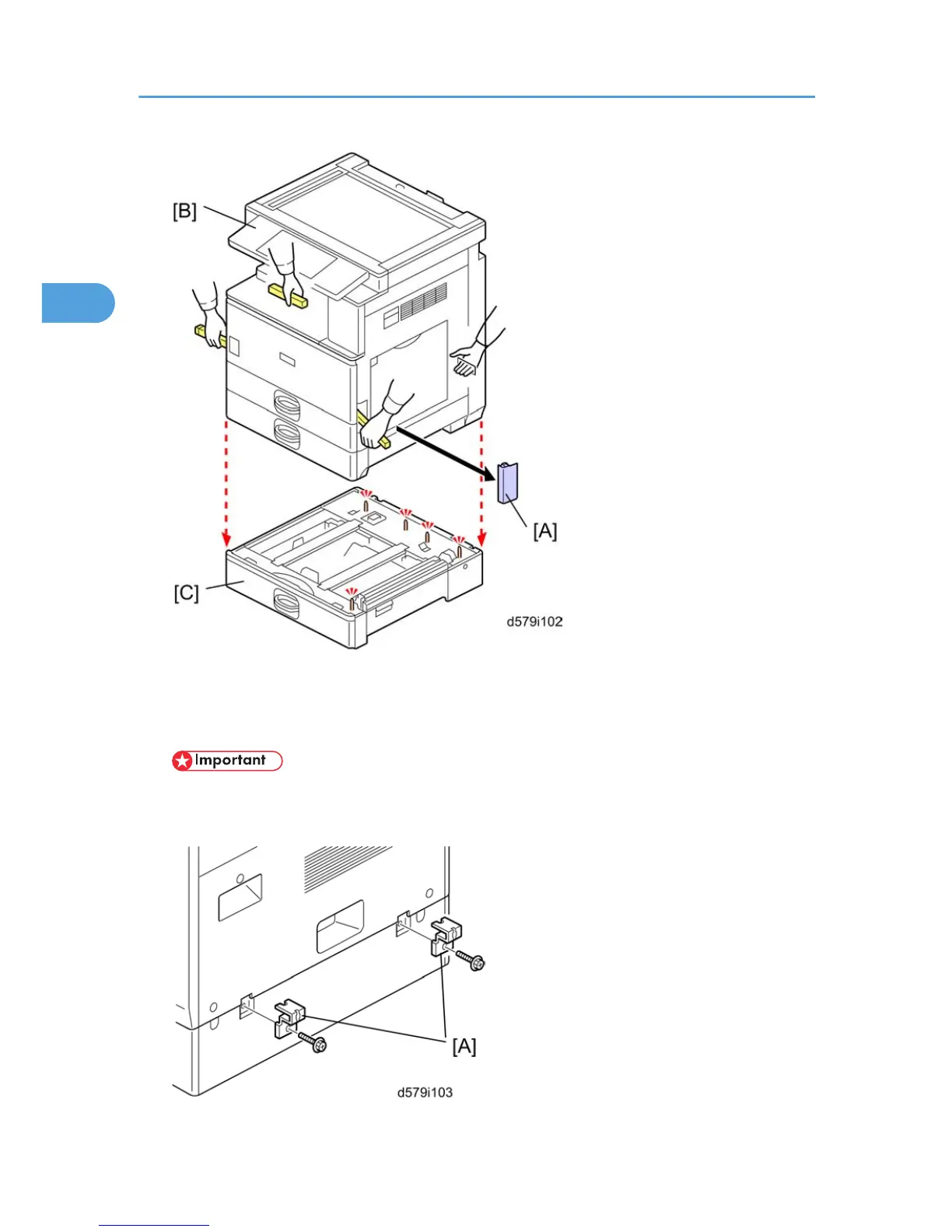

4. Remove the grip cover [A] at the front right of the main machine if this cover is attached.
5. Pull out three grips, then hold the handle and grips, and put the copier [B] on the paper feed unit
[C].
• You need two or more persons to lift the copier.
6. Attach the grip cover [A] to the main machine.
2. Installation
46
2
