7. Attach the securing brackets [A] ( x 1; M4x10 each).

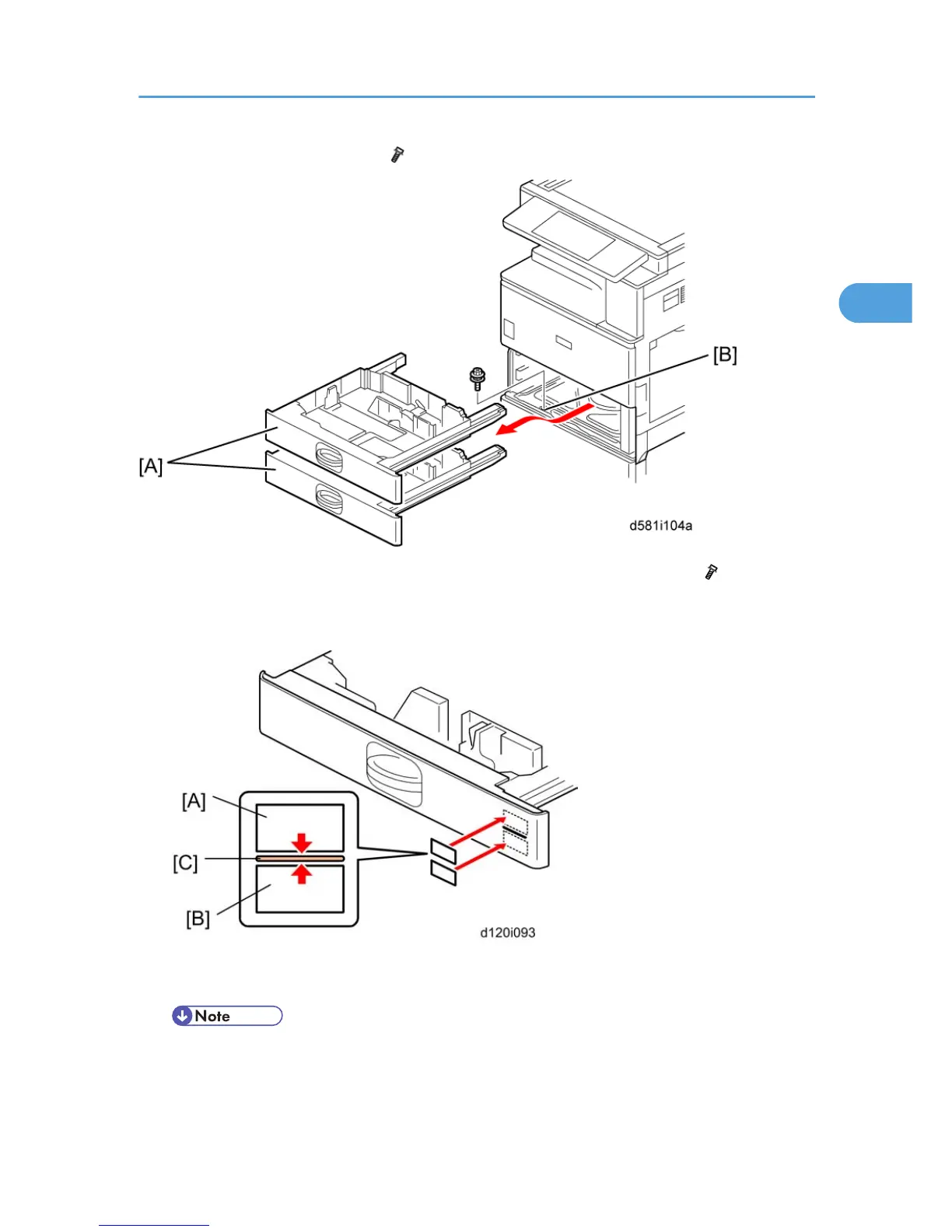

1. Remove the 1st and 2nc paper trays [A], and then secure the paper feed unit [B] ( spring
washer x 1; M4x 10).
2. Reinstall the 1st and 2nd trays.
3. Attach the appropriate paper tray number decal [A] and paper size decal [B] above and below
the line [C] on the tray of the paper feed unit.
• The paper tray number and size sheet is in the accessory box of the main machine.
4. Lock the caster stoppers for the front two casters under the paper feed unit.
5. Load paper into the paper tray and set the side fences and bottom fence.
Paper Feed Unit PB3120 (D579)
47
