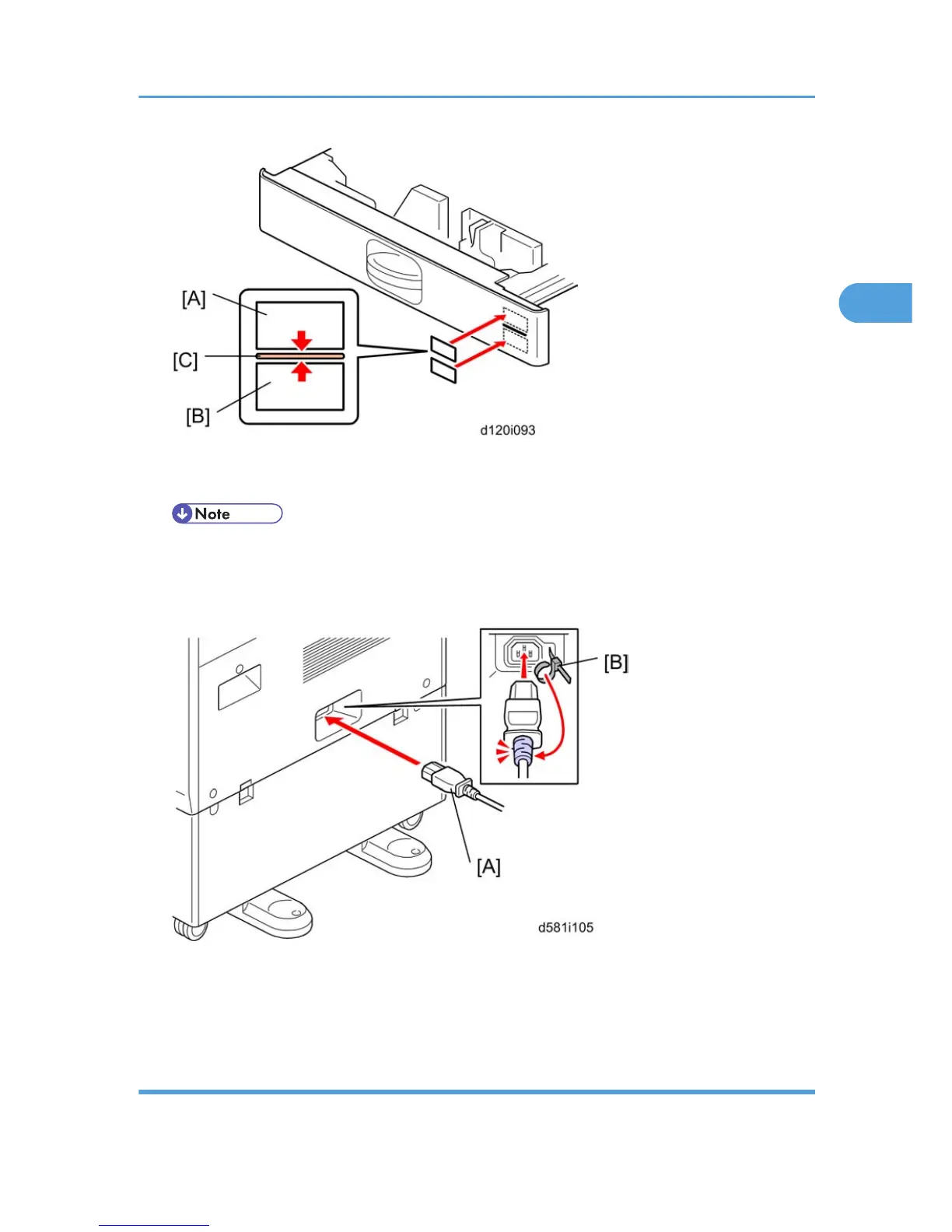

10. Attach the appropriate paper tray number decal [A] and paper size decal [B] above and below
the line [C] on each tray of the paper feed unit.
• The paper tray number and size sheet is in the accessory box of the main machine.
11. Lock the caster stoppers for the front two casters under the paper feed unit.
12. Load paper into the paper trays and set the side fences and bottom fence.
13. Connect the power cord [A] to the inlet of the main machine.
14. Secure the power cord with the clamp [B] on the main machine so that the power cord is never
disconnected.
SP Settings
1. Connect the copier and turn on the main power switch.
Paper Feed Unit PB3130 (D580)
55
