9. Remove the harness from the clamp [A].
10. Install the 1-bin tray unit [B] ( x 1, x 2).
• Use the screw which was removed in step 8.
11. Re-install the fusing fan ( x 2) and front right cover ( x 1).

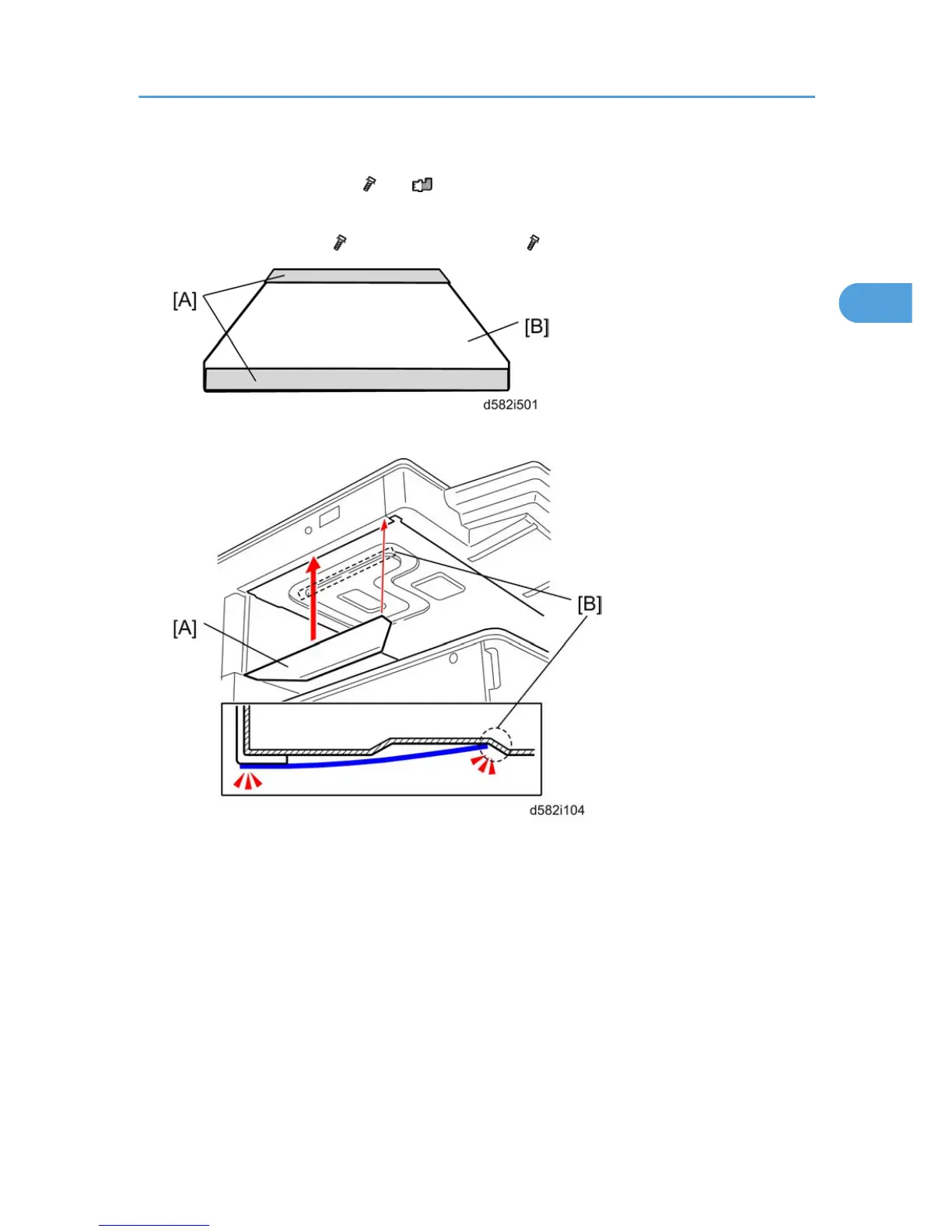

12. Peel off the double sided tapes [A] from the guide mylar [B].
13. Attach the guide mylar [A] so that the short edge of the guide mylar is aligned with the sloping part
[B] of the scanner unit bottom frame.
