RIDGID 535M - Specifications; Standard Equipment

999-998-086.09_REV. C6
535 Manual Chuck/535 Auto Chuck Threading Machines
Specications*
535 Manual Chuck Machines 535 Automatic Chuck Machines
Pipe Threading Capacity 1/8 to 2 inch (3 to 50 mm) Nominal Pipe Size
Bolt Threading Capacity ¼ to 2 inch (6 to 50 mm) Actual Stock Diameter
LH Threads With Modifications
Motor Type Universal Motor Induction Motor Universal Motor Induction Motor Induction Motor
Phase Single Phase 3 Phase Single Phase 3 Phase
Motor Power 2.3 (1.7) 0.5 (0.37) 2.3 (1.7) 1.8/2.3 (1.35/1.7) 1.5 (1.1) 2.3 (1.7) 2 (1.5) 1.8/2.3 (1.35/1.7)
HP (kW)
Volts V 115 115 230 400 220 110 230 120 400
Frequency Hz 50/60 50 60 50/60 60 50
Current Draw Amp 15 20 7.5 3.5/5.1 4.4 15 7.5 18 3.5/5.1
Operating Speed RPM 36 54 36 35/70 16/46/58 36 16/46/58 35/70
Rotary Type
Rotary Type
Rotary Type
Rotary Type
Rotary Type Rotary Type
2/1/0/1/2
1/0/2
REV/OFF/FOR
2/1/0/1/2
REV/OFF/FOR REV/OFF/FOR
Switch for
Switch
Rotary Type
(2/0/1)
Switch for speed
Controls
(2/0/1) (2/0/1)
speed and
Shifter knob
2/0/1 Switch
Switch Shifter and direction
Switch Switch
direction
for speed knob for control
control (see
selection speed selection (see Figure 19)
Figure 19)
ON/OFF Foot Switch
Front Chuck Speed Chuck with replaceable Rocker-Action Jaw Inserts Automatic with four reversible Forged Jaws
Rear Centering Device Cam Action, rotates with Chuck Automatic, Centering only
Die Heads See RIDGID Catalog for available Die Heads
Cutter Model 820, 1/8" – 2" Full Floating, Self-Centering Cutter
Reamer Model 341, 1⁄8" – 2", 5-Fluted Reamer
Oil System 7 qt (6.6 l), with integrated Gerotor Model MJ Pump (Units prior to 1996 – Model A Oil Pump)
Weight
260 lbs. (118 kg)
350 lbs. 290 lbs.
350 lbs. (159 kg)
(unit with oil and a DH) (159 kg) (132 kg)
Overall Dimension 37" × 21" × 21" (940mm × 535mm × 535mm)
L × W × H (With Tools In Operating Position and Cutter Fully Closed)
Sound Pressure (L
PA
)** 85 dB(A), K=3
Sound Power (L
PW
)** 91 dB(A), K=3
* Refer to your machine serial number plate for information on motor rating and control panel for information on your specific machine.
** Sound measurements are measured in accordance with a standardized test per Standard EN 62481-1.
- Sound emissions may vary due to your location and specific use of these tools.
- Daily exposure levels for sound need to be evaluated for each application and appropriate safety measures taken when needed. Evaluation of exposure levels
should consider the time a tool is switched off and not in use. This may significantly reduce the exposure level over the total working period.
Standard Equipment
Refer to the RIDGID catalog for details on equipment
supplied with specific machine catalog numbers.
The Threading Machine serial number plate is located
on the back cover. The last 4 digits indicate the month and
year of the manufacture.

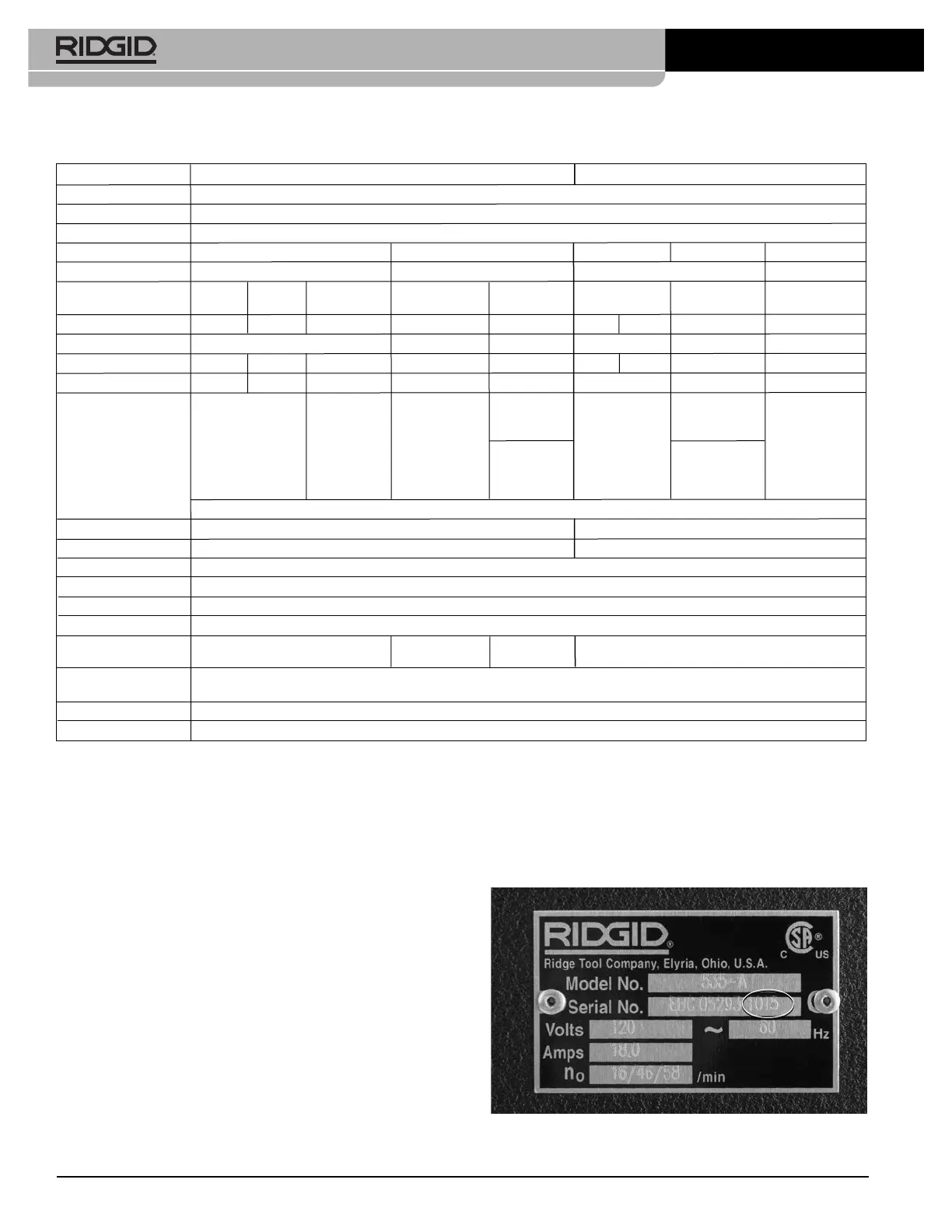

Figure 3 – Machine Serial Number
