128 Rockwell Automation Publication 5094-UM001C-EN-P - April 2019
Appendix A Troubleshoot Your Module

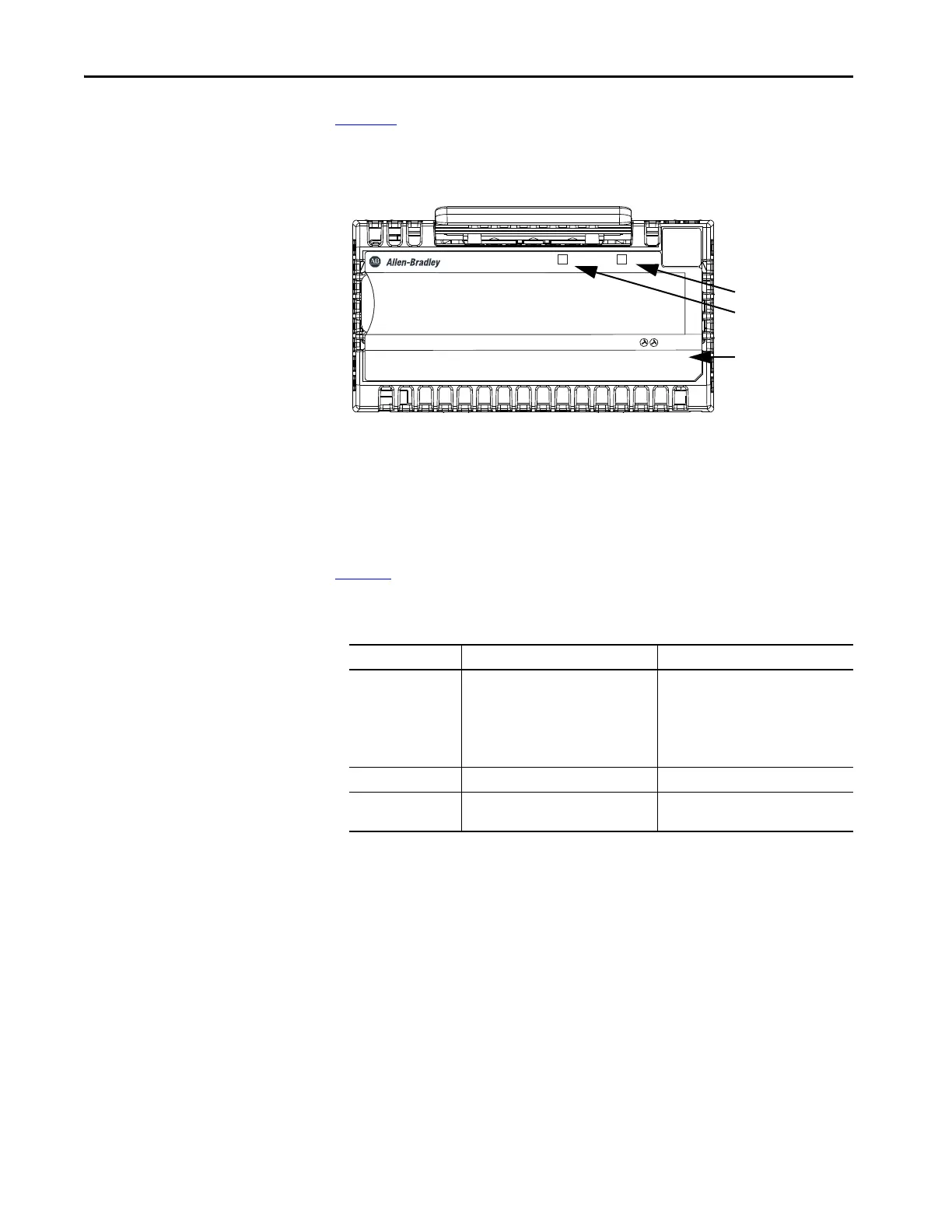

Figure 18 show the status indicators on FLEX 5000 relay output modules.
Figure 18 - FLEX 5000 Relay Output Module Status Indicators
Tabl e 24 describes the I/O Status indicators on FLEX 5000 relay output
modules.
STATUS
POWER
RELAY 8 OUTPUT ISOLATED
5094-OW8I
2
2
TB3W
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7
Output Point 0 (O00)
Output Point 1 (O01)
Output Point 2 (O02)
Output Point 3 (O03)
Output Point 4 (O04)
Output Point 5 (O05)
Output Point 6 (O06)
Output Point 7 (O07)
SA power status indicator
5094-OW8I, 5094-OW8IXT
Module status indicator
I/O status indicators
Table 24 - I/O Status Indicators - FLEX 5000 Relay Output Modules
Indicator State Description Recommended Action
Off One of the following:
• The output point is Off.
• There is no backplane power.
One of the following:
• Confirm that the output point is
configured properly.
• Confirm that there is backplane power
supplied through the FLEX 5000
EtherNet/IP adapter.
Steady yellow The output point is operating normally. None
Flashing red A Field Power Loss condition exists. Locate and correct the cause of field power
loss condition.
