16 Rockwell Automation Publication 5094-UM001C-EN-P - April 2019
Chapter 1 Digital I/O Module Operation in a Logix 5000 Control System
Logix 5000 controllers use FLEX 5000 standard and safety I/O modules to
control devices in a control system. The controllers access the modules over an
EtherNet/IP™ network. FLEX 5000 I/O modules use terminal base (TB)
assemblies to connect field-side wiring.
FLEX 5000 I/O modules use the Producer/Consumer network communication
model. This communication is an intelligent data exchange between modules and
other system devices in which each module produces data without first being
polled.
You use FLEX 5000 I/O modules as remote I/O modules that are accessible via
an EtherNet/IP network. The modules are installed to the right of a FLEX 5000
EtherNet/IP adapter.
Logix 5000 controllers can exchange data with the modules over the network.
Figure 1
shows a standard controller with standard I/O modules. Standard
controllers do not support safety I/O modules.

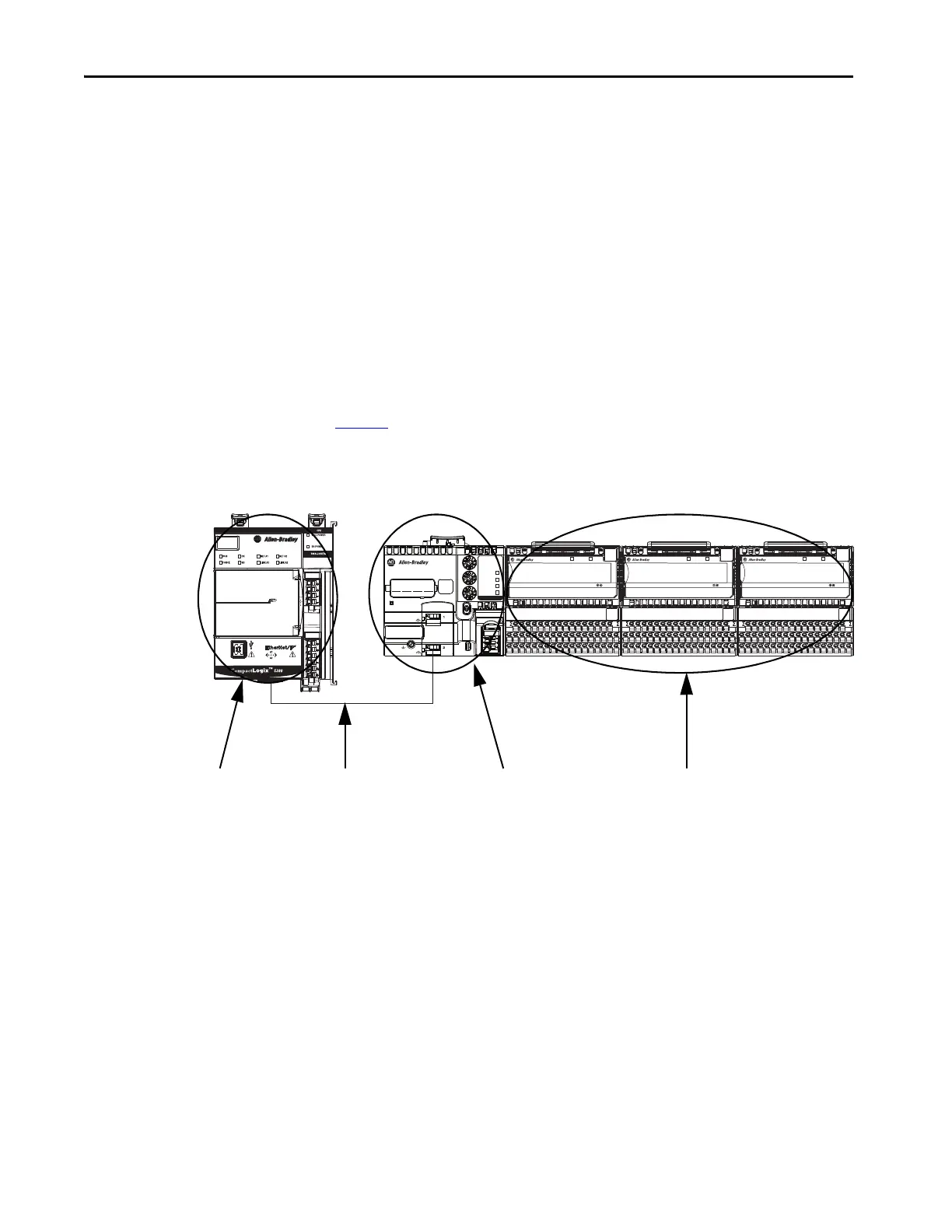

Figure 1 - FLEX 5000 Standard I/O Modules in a Logix 5000 Control System
STATUS
NET
LINK 1
LINK 2
5094-AENTR
EtherNet/IP
™
Adapter
FLEX 5000
TM
I/O
PRP
DLR
POWER
X100
X10
X1
IP ADDRESS
STATUS
POWER
DIGITAL 16 INPUT 24 VDC
5094-IB16
1
1
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
DIGITAL 16 OUTPUT 24 VDC
5094-OB16
1
2
TB3
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
STATUS
POWER
RELAY 8 OUTPUT ISOLATED
5094-OW8I
2
2
TB3W
FLEX 5000
TM
I/O
0 1 2 3 4 5 6 7
5069-L340ERM
EtherNet/IP Network
5094 Standard I/O
5094-AENTR
