90 Rockwell Automation Publication 5094-UM001C-EN-P - April 2019
Chapter 6 Configure the Standard Module

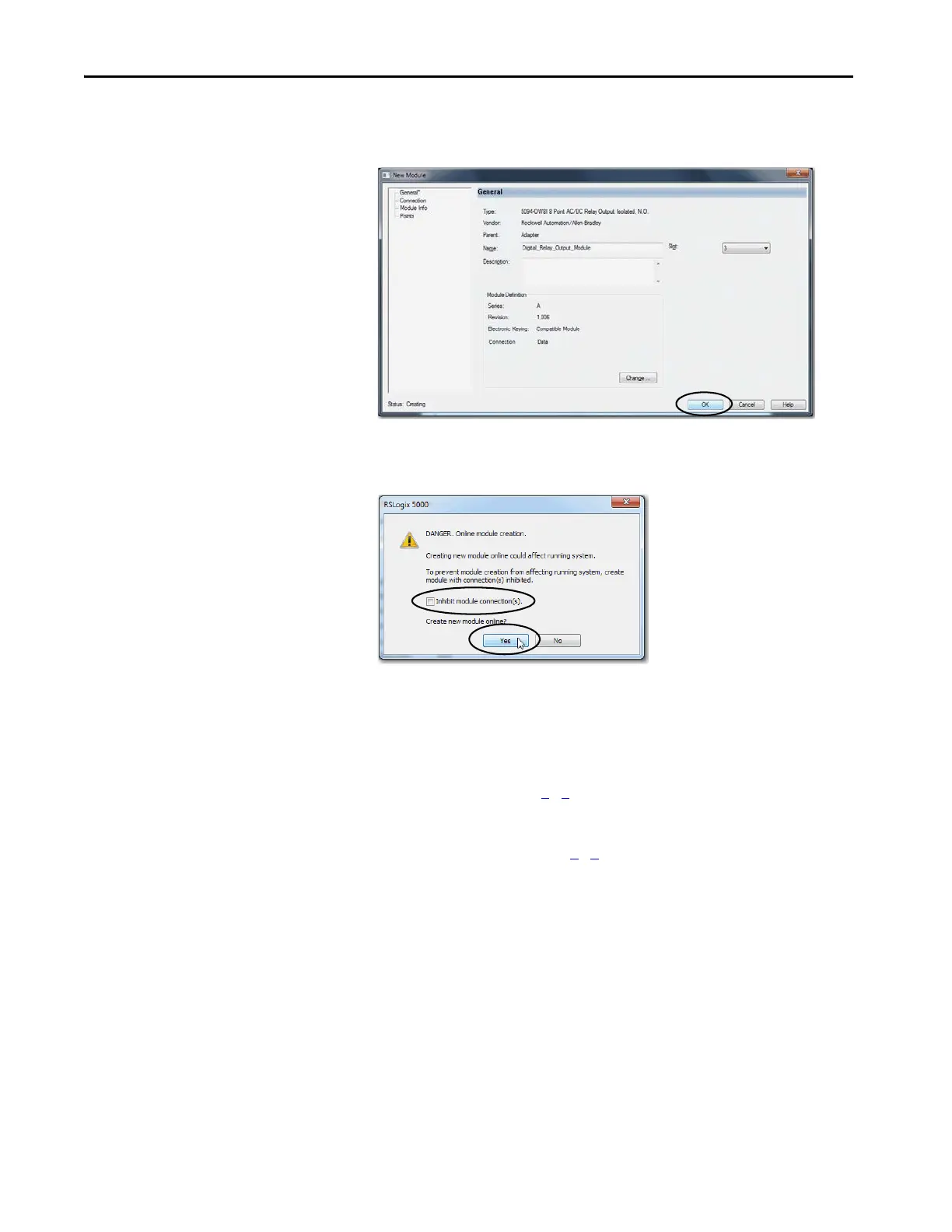

4. At the New Module window, configure the module properties and
click OK.
5. At the warning dialog box, make sure that Inhibit module connection is
selected and click Yes.
6. Close the Select Module Type dialog box.
To add additional I/O modules with this method, complete one of the following:
• If you cleared the Close on Create check box when you created the first
I/O module, repeat steps 3
…6.
• If you did not clear the Close on Create checkbox when you created the
first I/O module, repeat steps 2
…6.
