Chapter 6 Configure and Start the Kinetix 5500 Drive System

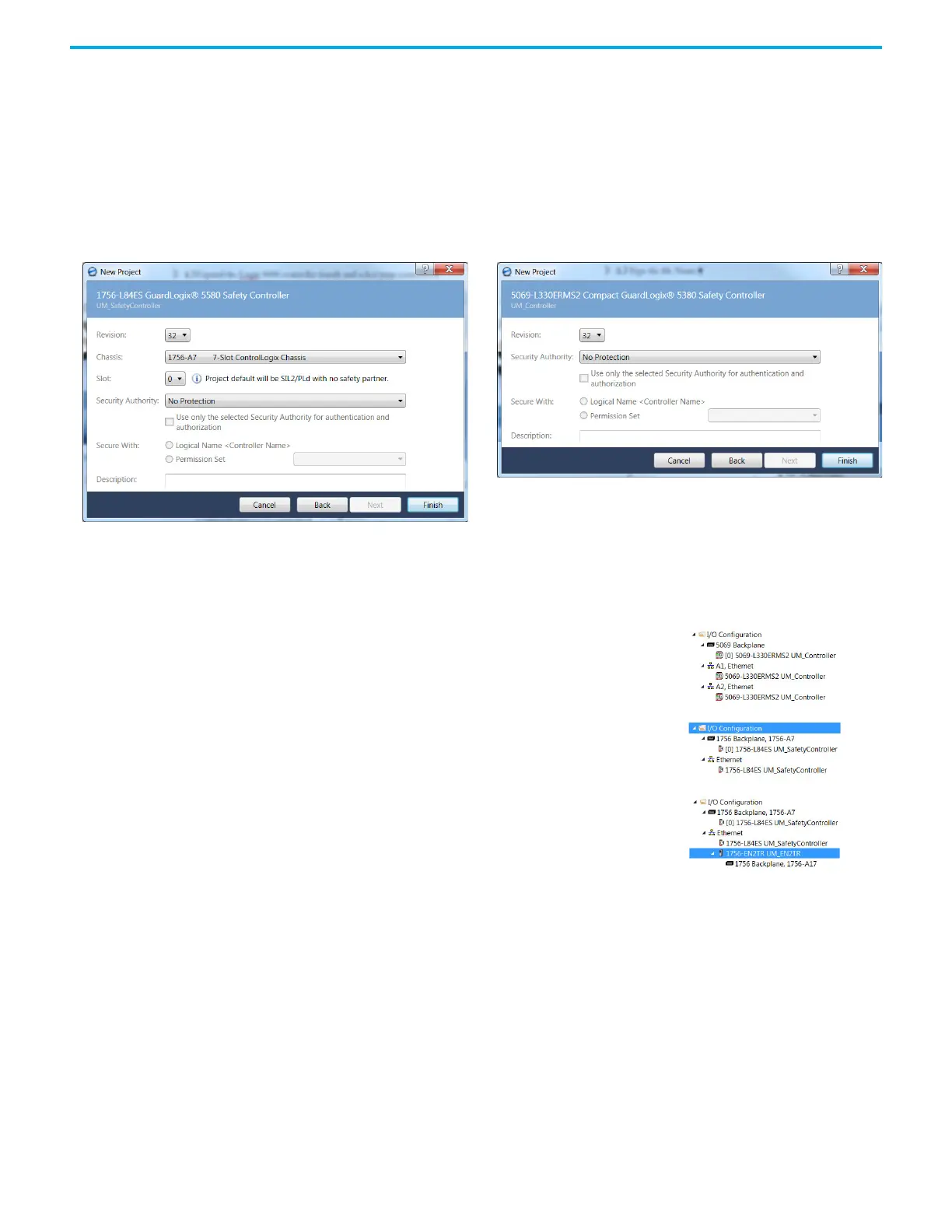

In this example, the typical dialog boxes for ControlLogix and GuardLogix
5380 controllers and CompactLogix 5380 controllers with embedded Ethernet
are shown.
Follow these steps to configure your Logix 5000 controller.
1. Expand the Logix 5000 controller family and select your controller.
2. Type the file Name.
3. Click Next.
The New Project dialog box appears.
4. From the Revision pull-down menu, choose your software revision.
5. Click Finish.
The new controller appears in the Controller Organizer under the
I/O Configuration folder.
Controller Organizer with
CompactLogix 5380 controller.
Controller Organizer with
GuardLogix 5580 controller.
6. In this example, a GuardLogix 5580
controller with 1756-EN2T
communication module is used.
