Chapter 6 Configure and Start the Kinetix 5500 Drive System

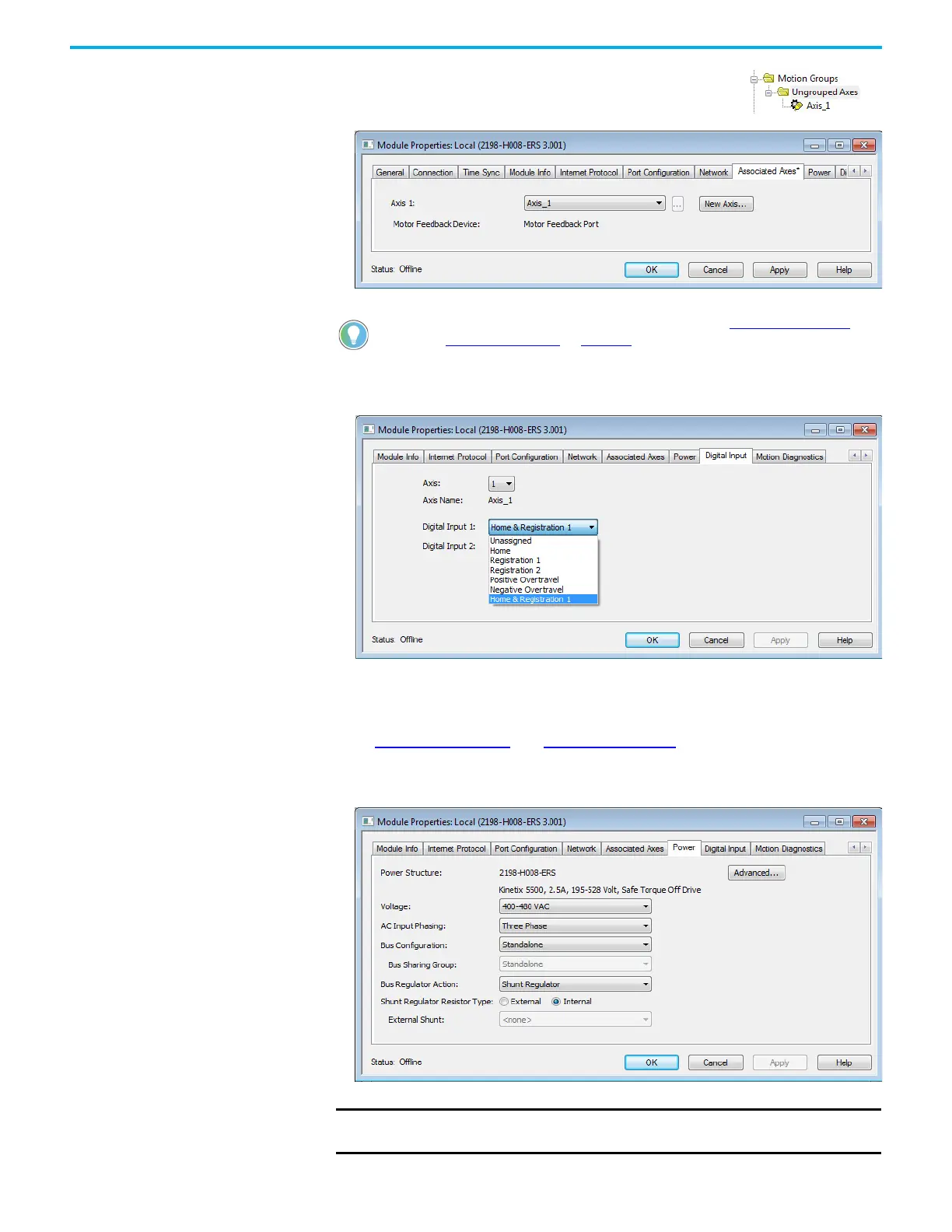

The axis (Axis_1 in this example) appears in the
Controller Organizer under Motion Groups >
Ungrouped Axes and is assigned as Axis 1.
6. Click Apply.
7. Click the Digital Input tab.
8. From the Axis pull-down menu, choose an axis to configure.
9. From the Digital Input pull-down menus, choose a digital input
assignment appropriate for your application. For more information, see
Table 30 on page 62
and Table 31 on page 62.
10. Click Apply.
11. Click the Power tab.
You can configure an axis as Feedback Only. See Configure Feedback-
only Axis Properties on page 120 for more information.
IMPORTANT Single-phase operation is possible only when Module Properties >
Power tab > Bus Configuration is configured as Standalone.
